More Options. Easy Specification
We've added more to the offering, making it easier for you to enhance your design with StencilFlex. Our expanded options now include recessed and surface mounting, allowing seamless integration into any space. We’ve also broadened our linear inserts and decorative offerings for maximum lighting creativity. Our lighting inserts are compatible in any mounting option, giving you more flexibility than ever before.
A Framework for Limitless Lighting Design

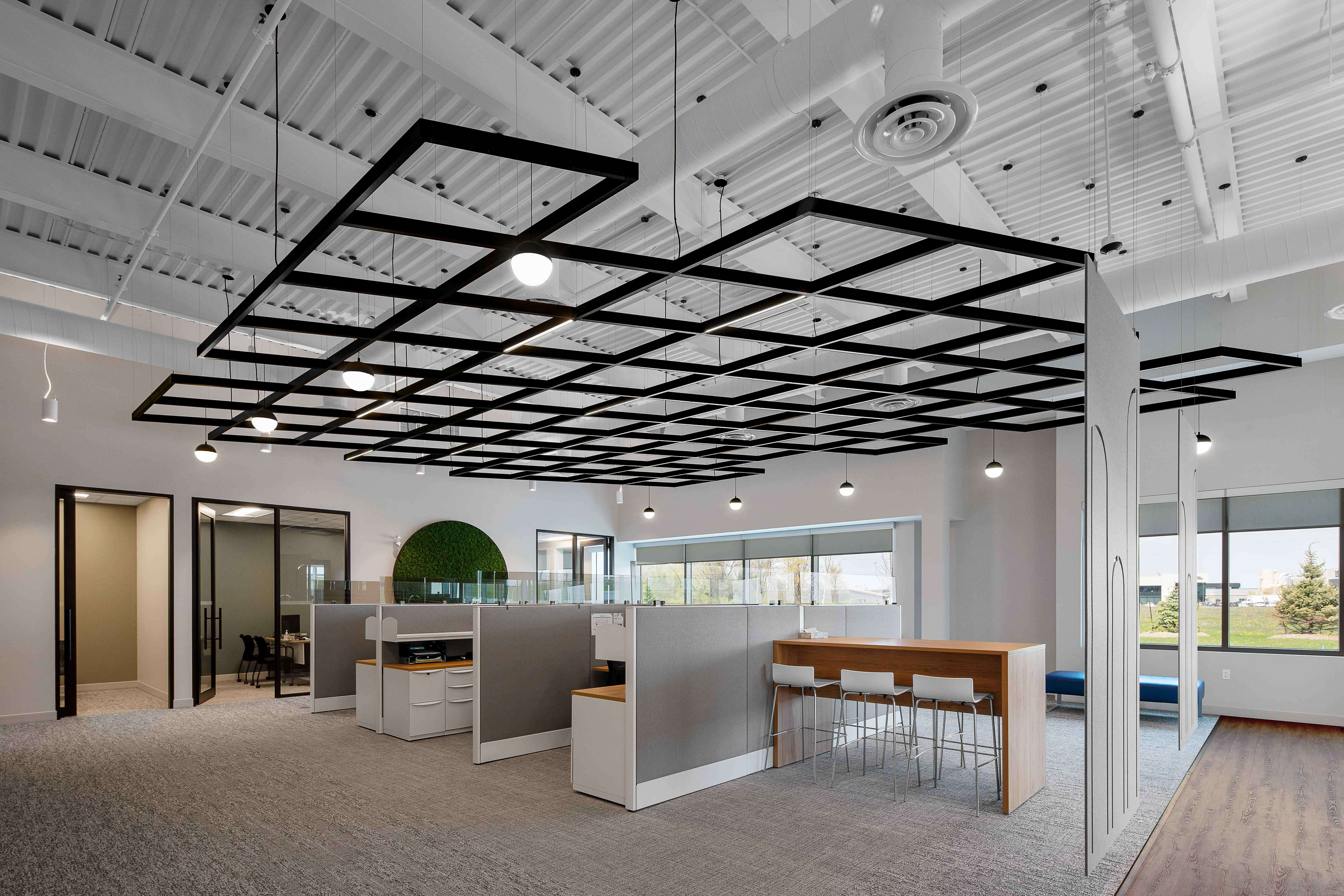

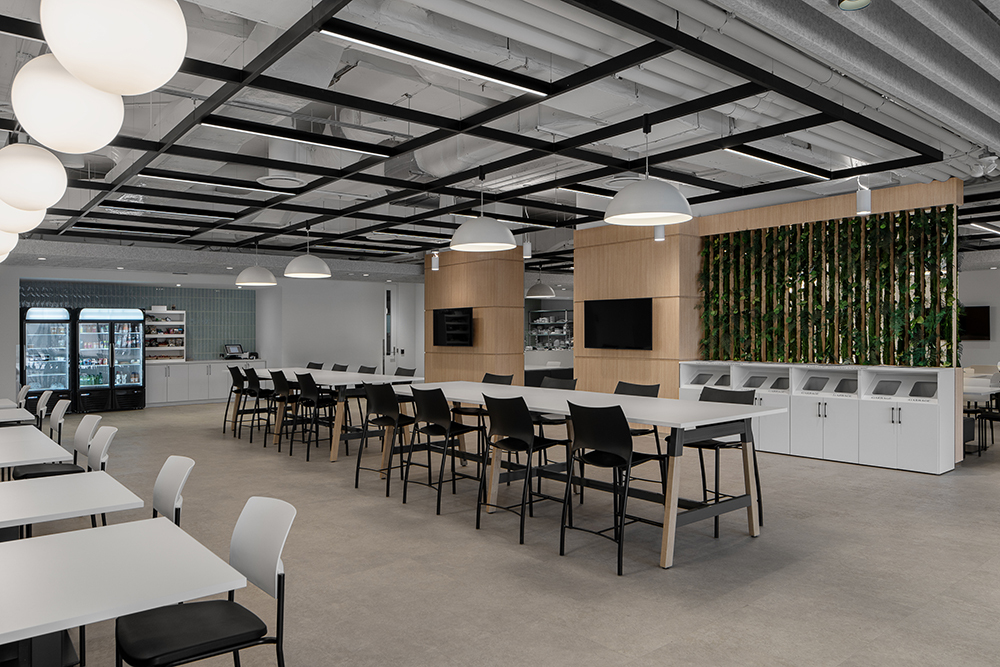

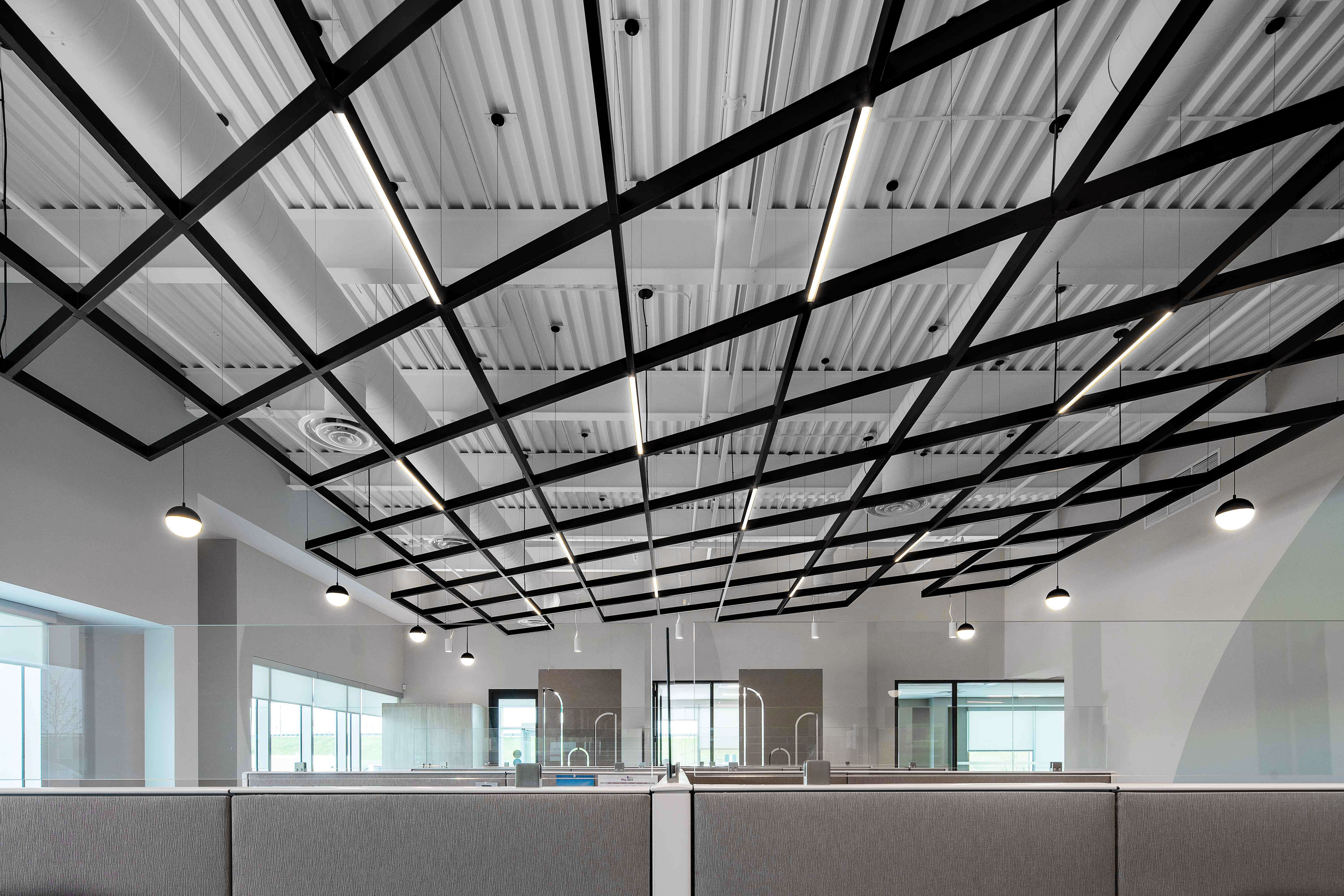

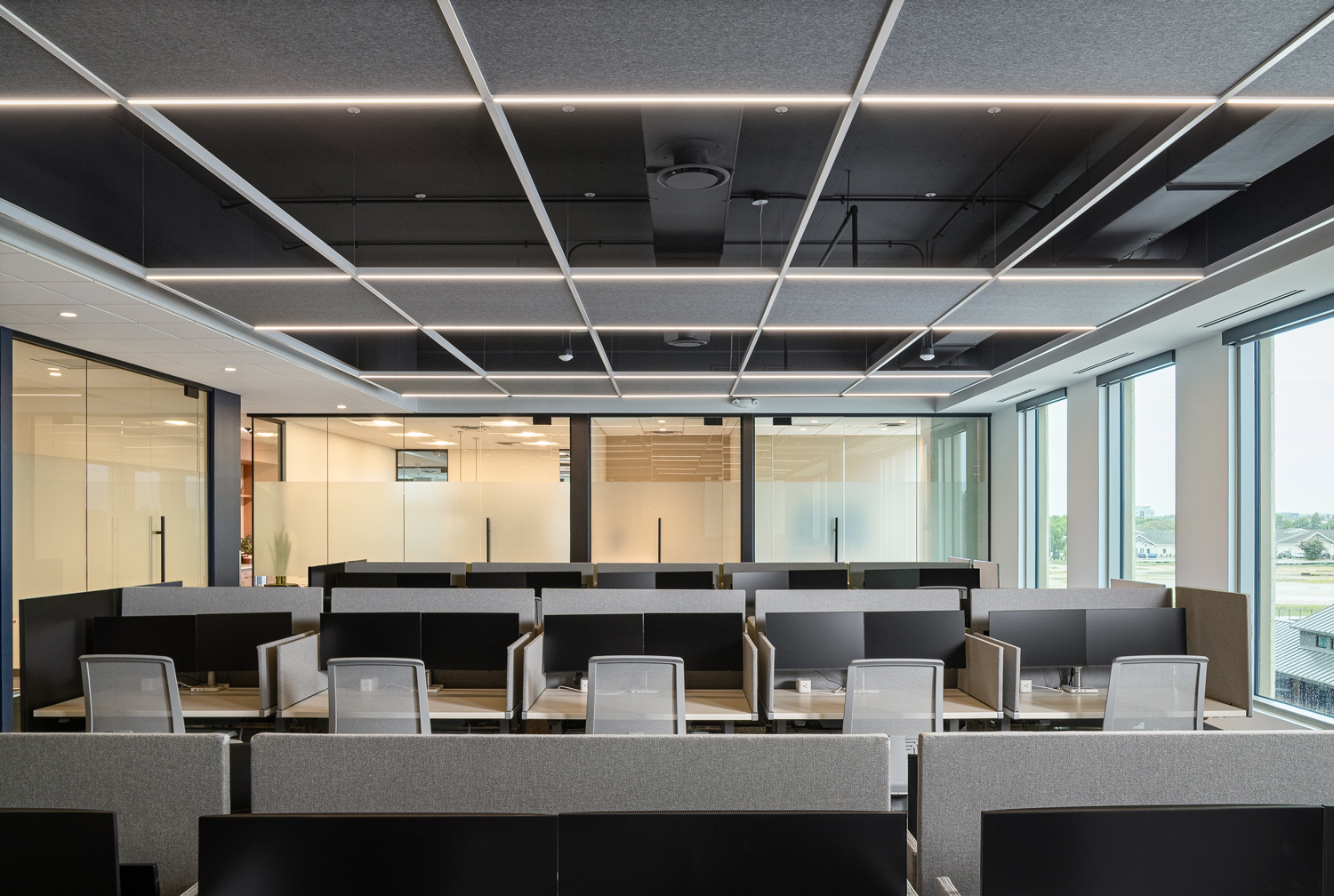

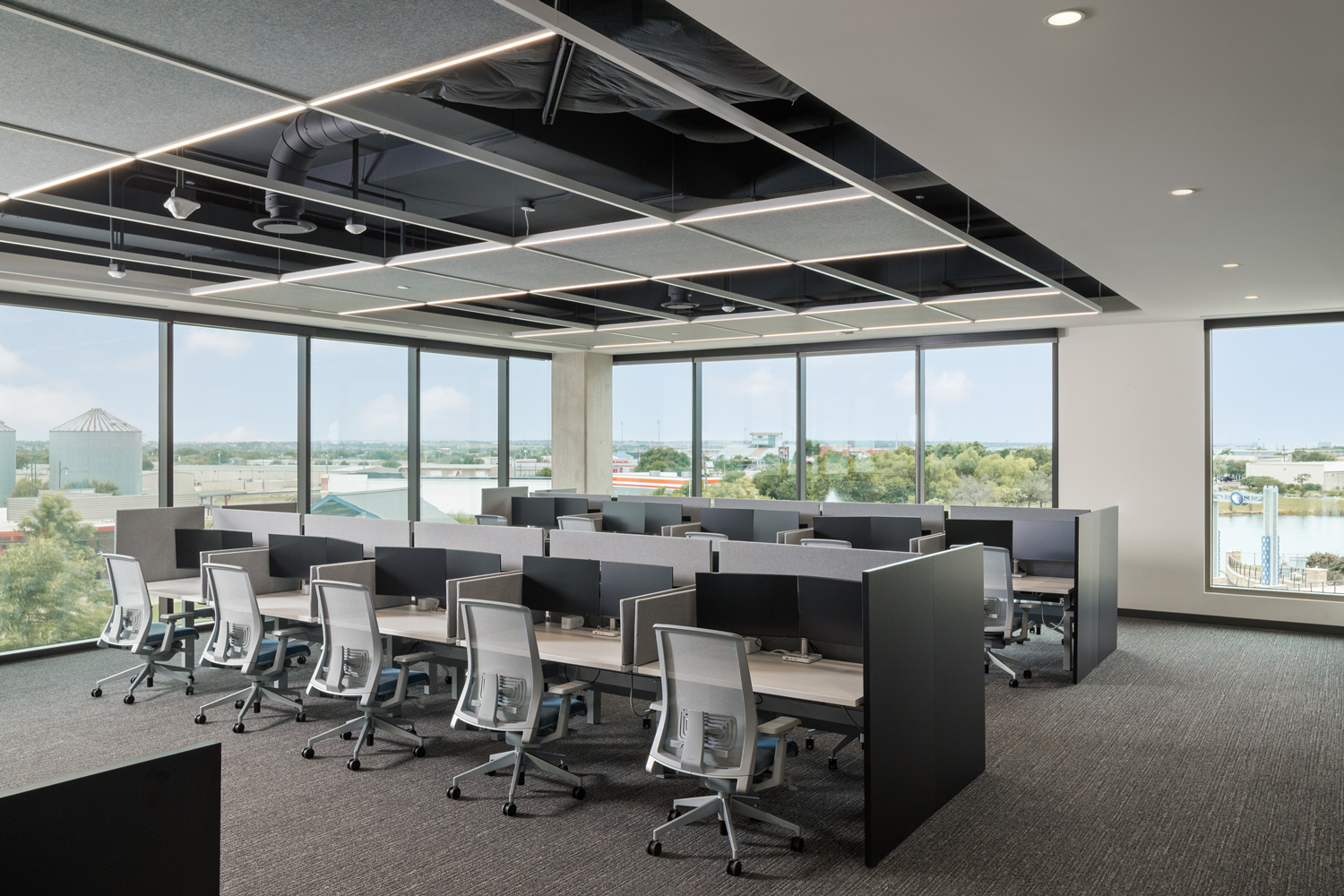

In spaces with exposed ceilings, the StencilFlex framework creates a suspended, scalable ceiling-like structure that supports layers of light, while maintaining an architectural look
with the option of integrating highly appealing acoustic elements. StencilFlex lighting projects can include one or multiple frameworks of different shapes and sizes, including all-new Curves. Which type of framework fits your vision for the space?
Product Configurator
- Click a product to configure.
- Choose to:
- Add it to a "Project."
- Copy the code.
- Download the configured sheet.
- If added to a "Project," configure more product(s).
- Click on "Project List" to review configured products and download them.

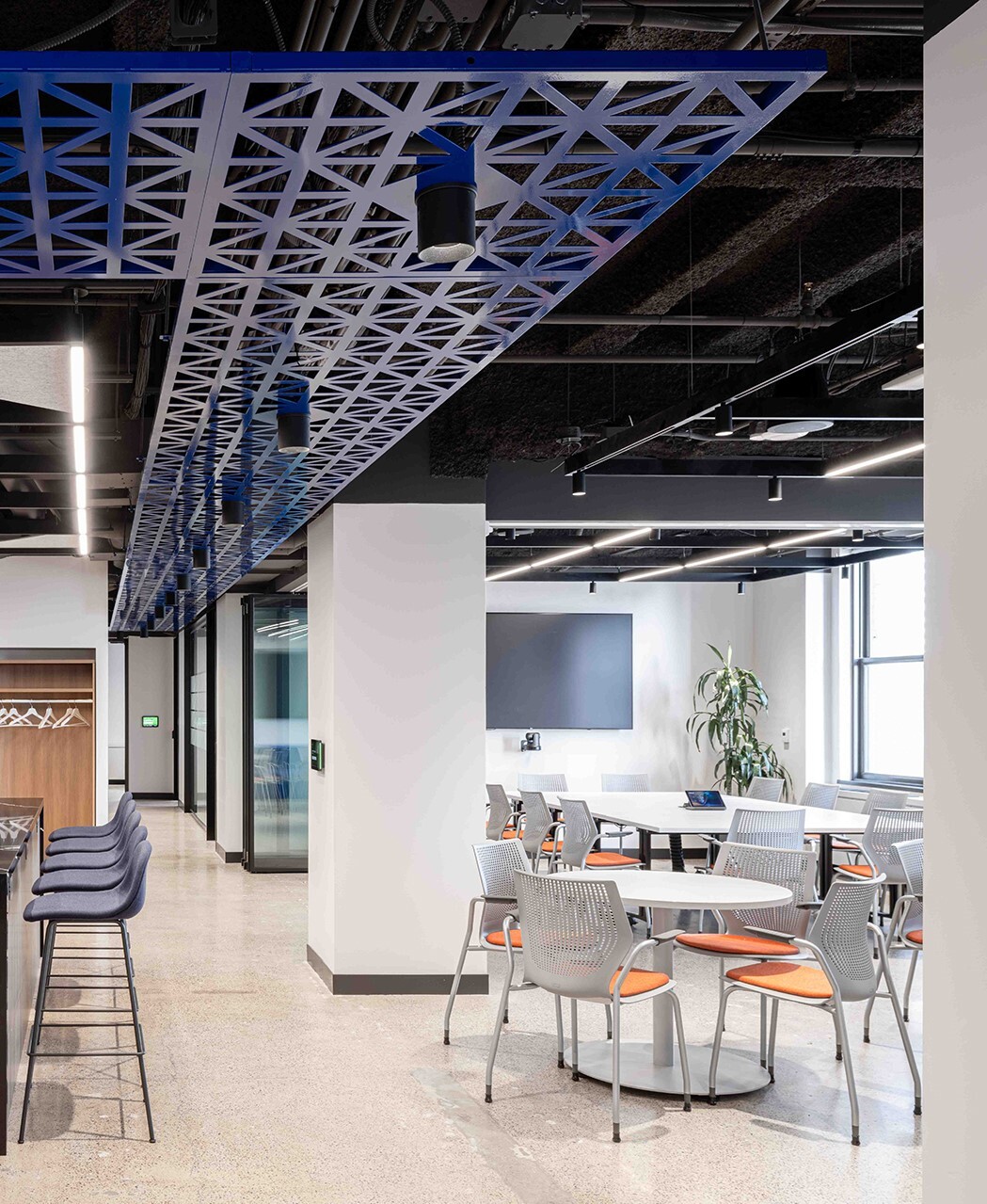

LattiX™ Acoustic Grids
Choose from 16 vibrant colors of colorfast, easy-to-clean felt made from 60% recycled PET plastic. Our easy-to-assemble kits ensure hassle-free mounting without the need for additional support cables. Acoustic grids are seamlessly integrated into StencilFlex frameworks and cannot be repositioned, so be sure to incorporate them during the framework design phase (Step 2) for optimal acoustic performance.

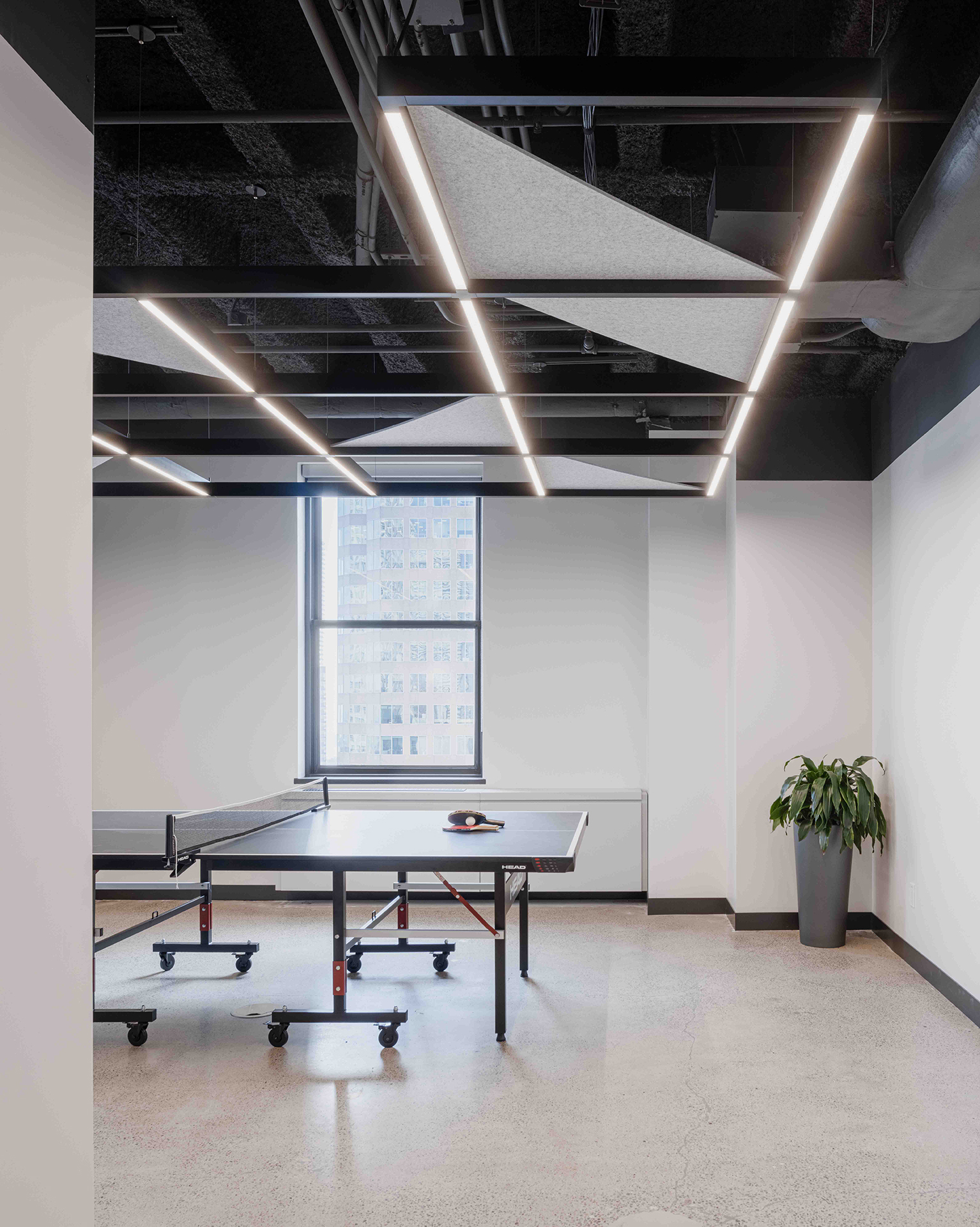

Horizontal Acoustic Panels
Available in 40 colors, these acoustic panels are made from polyester fill with at least 40% recycled PET plastic. They are easy to install and reposition within StencilFlex frameworks, allowing for flexible adjustments as needs evolve. Horizontal acoustic panels support seamless integration with building systems like HVAC and sprinklers. For a cohesive design, optional framework color-matching is available—consult your Axis representative for details.
StencilFlex Forms Collection
We have simplified your design and specification process. Creating easy-to-scale shapes that will allow you to quickly transform any space into an extraordinary experience. StencilFlex Forms
How to build
Step 1: Design
Framework
Choose from pendant, surface, or recessed mounting, and create your custom reflected ceiling plan with joining hubs and linear sections. Use segments as a cost-effective wireway to power and control light where needed. Consider your control system too. For multiple or reconfigurable zones, our digital addressable wired system offers granular control, allowing individual fixtures to operate independently with minimal power loss. Control at the room level with the Axis Digital Control Touch Switch or integrate with building-level controls.
Step 2: Add Lighting Inserts To Framework

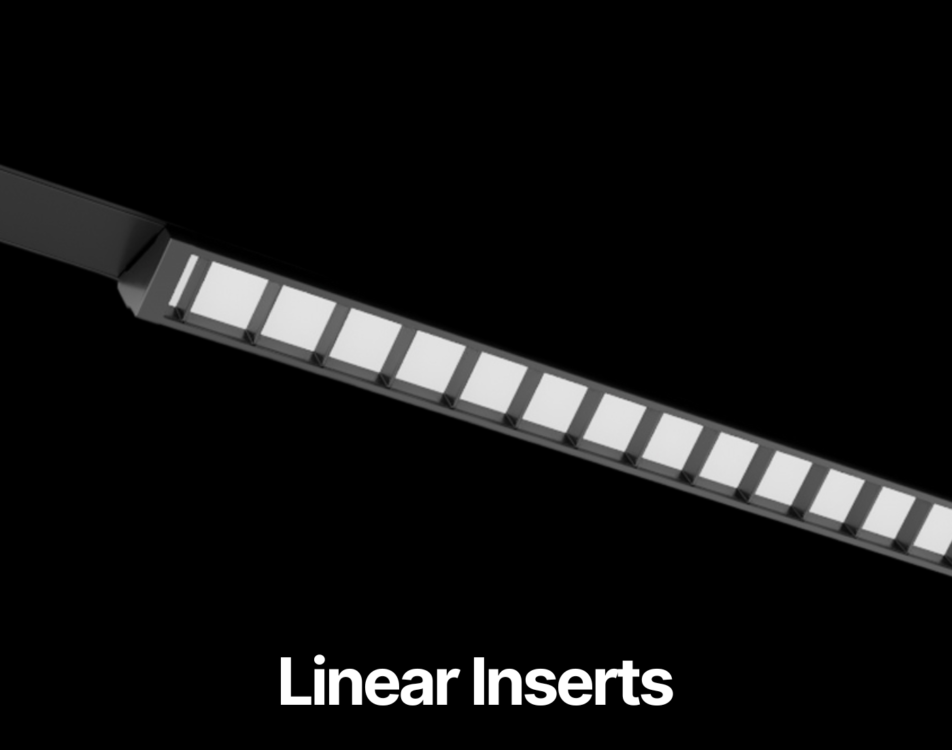

Choose linear inserts for general lighting or AxisTrak™ track inserts for accent and decorative lighting. AxisTrak™ makes track lighting easier with low-voltage technology—no need for remote drivers, lowering costs and keeping track heads flexible. Each insert has a mini line-voltage driver, making swaps and on-site adjustments simple. The optional shunt relay qualifies StencilFlex for emergency lighting. Use blank inserts where lighting isn’t needed to keep your design clean and energy-efficient
Step 3: Decorative, Acoustics, & Accessories
This step is required if AxisTrak™ was selected in Step 2 or if acoustics and other accessories are desired. If only linear inserts were selected, you could submit your reflective ceiling plan for review. For AxisTrak™, choose from various accents and decoratives (spotlights, cylinders, orbs, and tubes) to add a decorative light layer to your space. Track elements come prewired for full adjustability along the insert.
Optional: Acoustics &
Accessories
Add LattiX™ grids or horizontal acoustic panels to improve sound clarity or add visual interest to StencilFlex. Acoustic samples are available to help ensure your color choice is a perfect match.
