Crafted with upscale, highly aesthetic optics and a stunning array of nine high-quality finishes, MikroLite elevates any space it illuminates. Select from a variety of baffle shapes and unique finishes to craft distinctive, personalized styles that perfectly complement your space
MikroLite offers two distinct cell optics. The TIR (total internal reflection) optic brings the light source closer to the opening of the fixture providing a sharp, focused beam of light with a pleasing presence. The reflector optic keeps the light source deep in the cell for a quiet soft beam with exceptionally low glare.
Each optic has a variety of beam angles to chose from, allowing you to precisely tailor the illuminated environment to your needs. Whether you require broad, ambient lighting for environments such as office or educational settings, or focused task lighting for hospitality

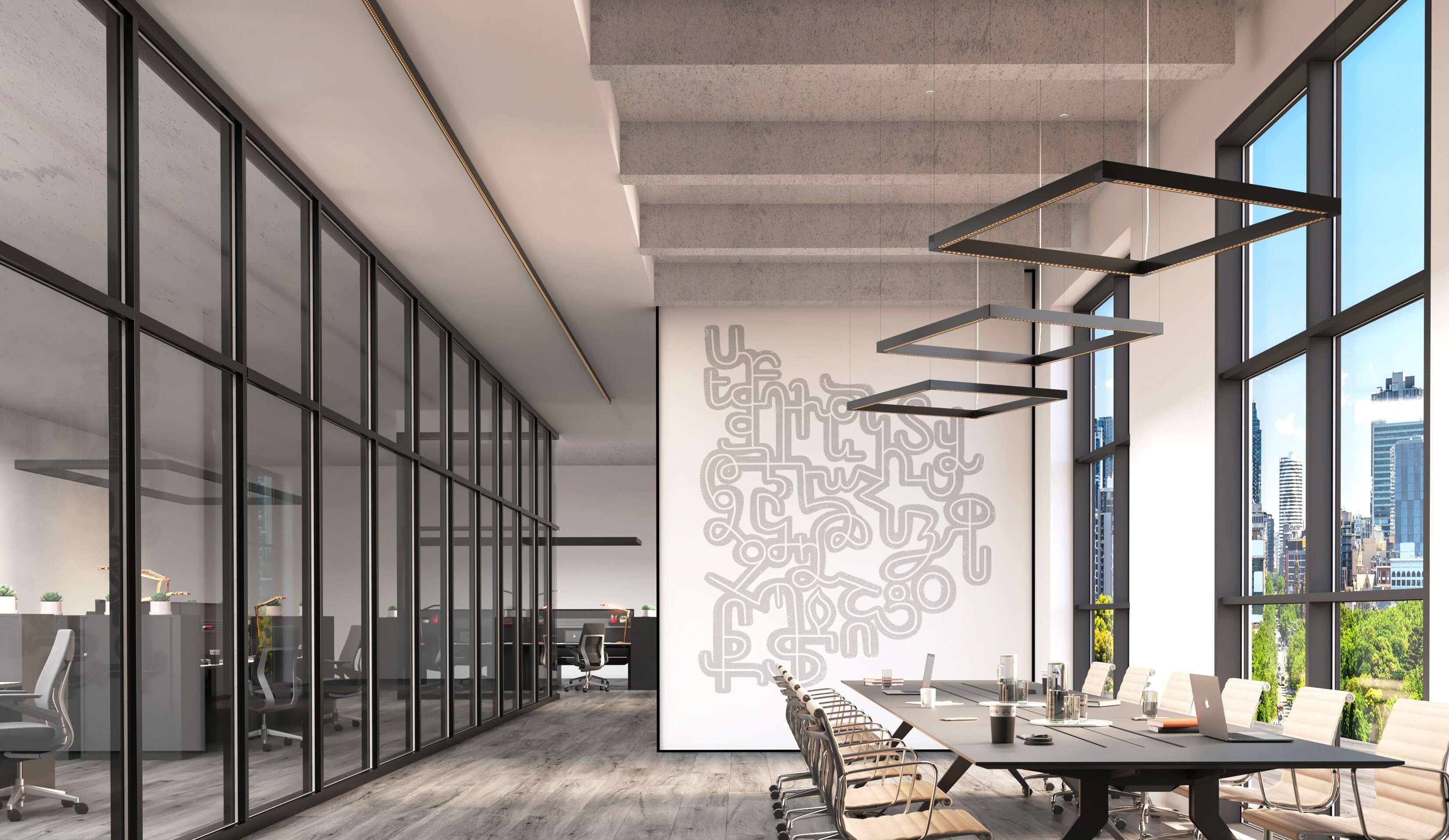

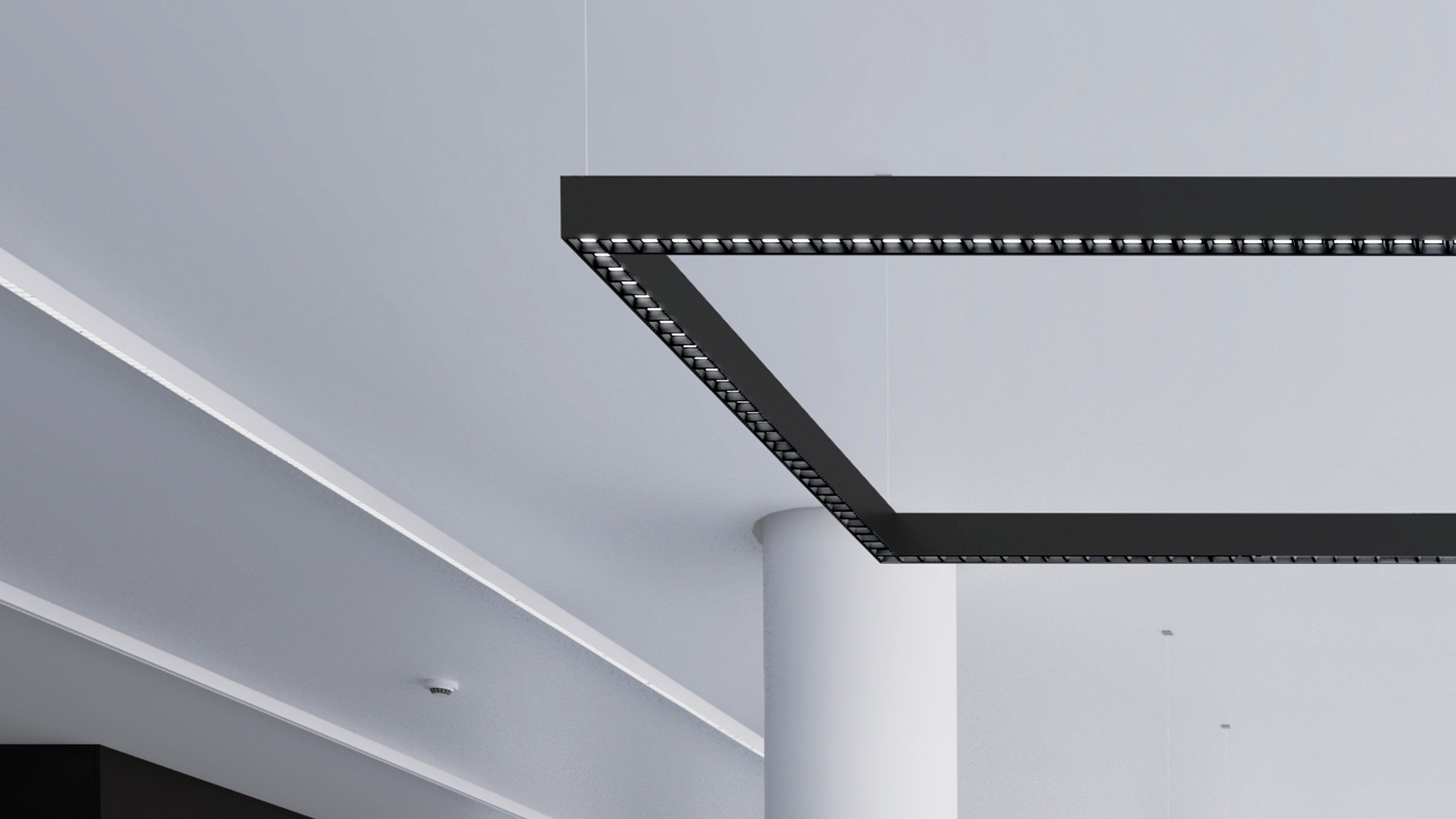

With its versatile design, MikroLite's scalable continuous runs provide unmatched flexibility. Perfect for architectural applications, MikroLite effortlessly combines downlight and linear lighting elements, offering versatility without compromising on aesthetics or performance.
Stencil MikroLite is a high-CRI, glare-free, linear downlight ideal for accent lighting applications. Available with (Stencil Pendant, Stencil Surface, SoftZone and Slate).
Sculpt MikroLite is the first high-performance, high-CRI, glare-free linear micro downlight. It features significant advances recognized by the 2018 IES Progress Report.

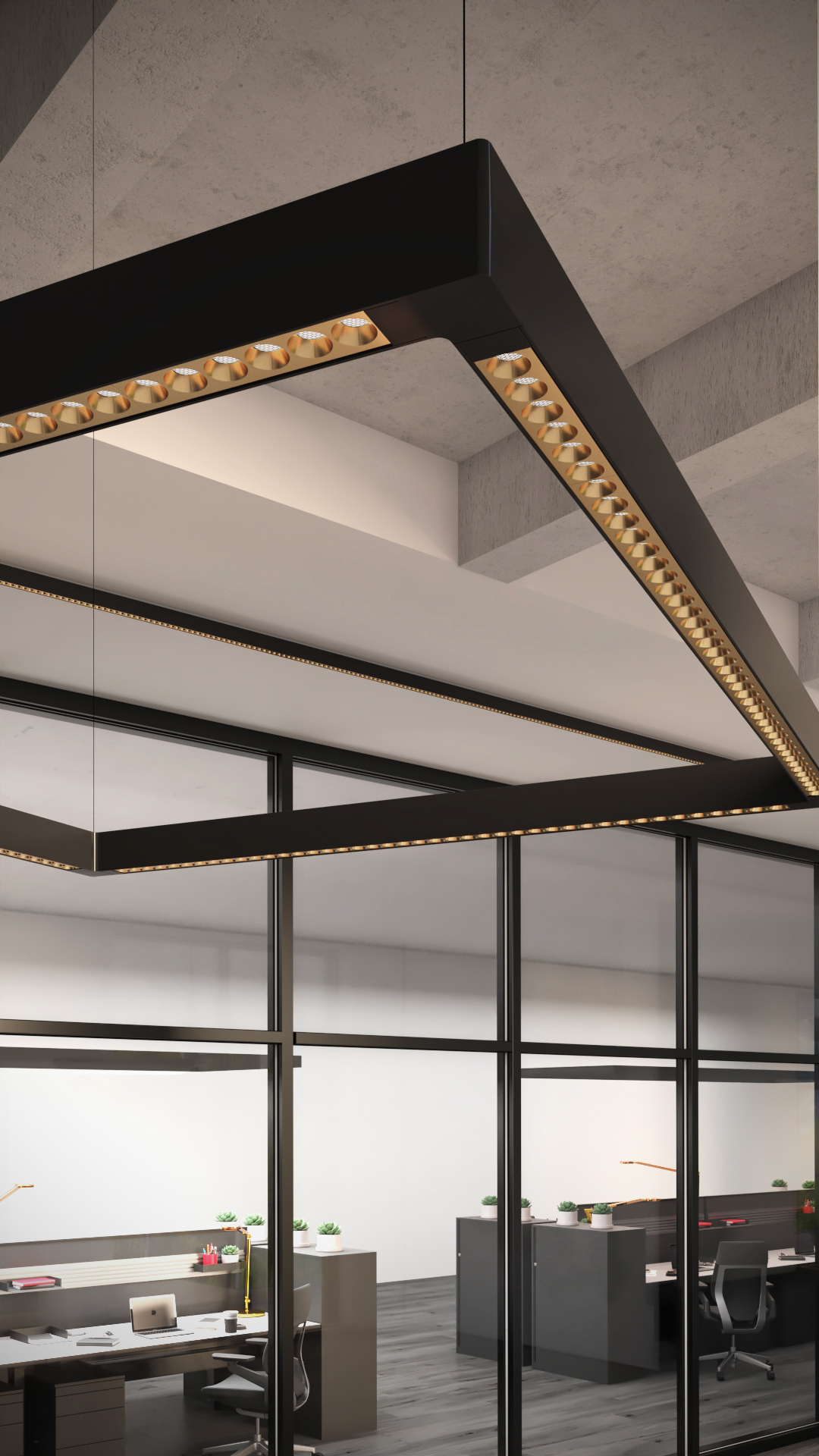

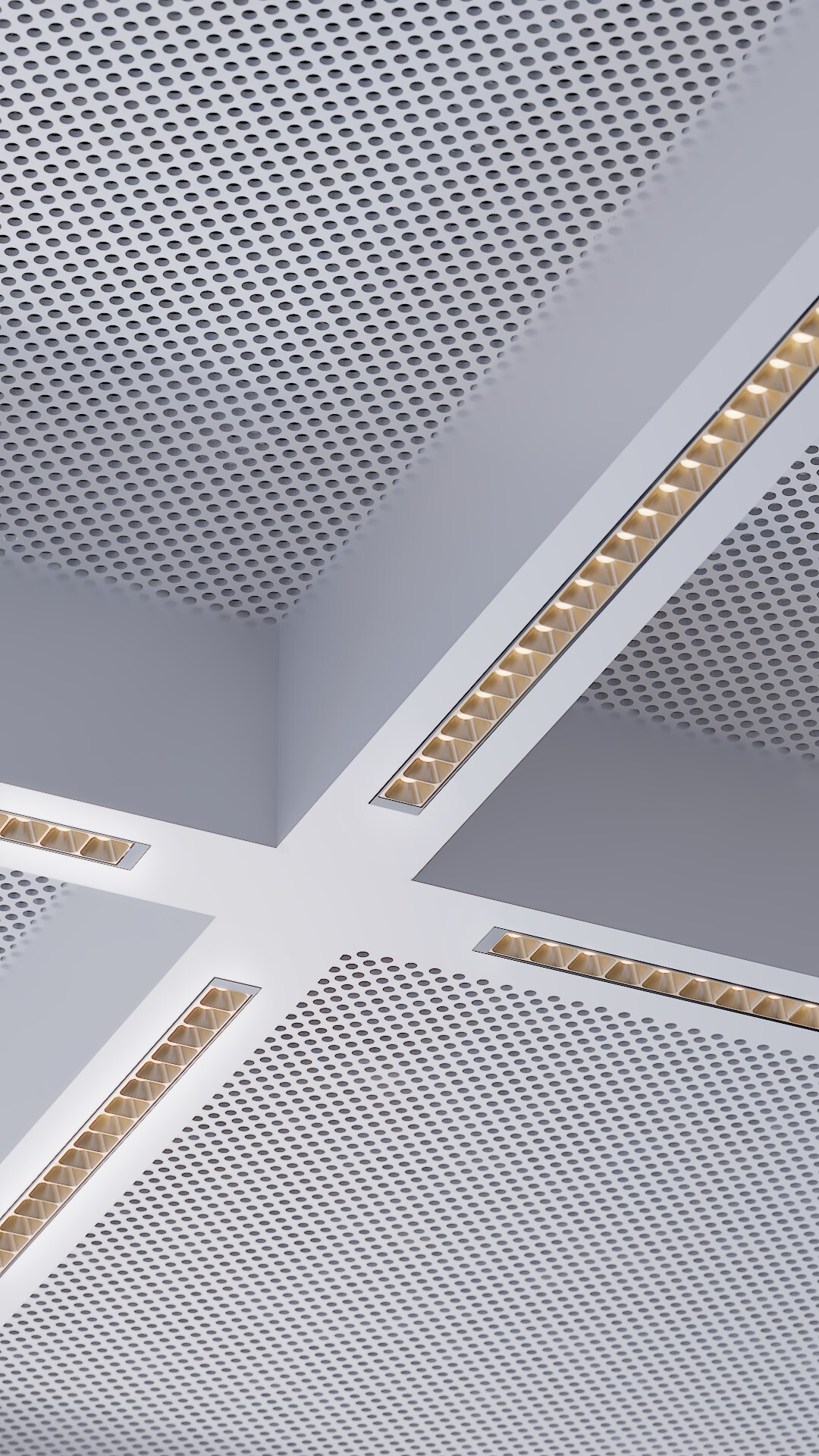

Sculpt MikroLite Crafted for both functionality and aesthetics, Sculpt MikroLite offers 3 unique baffle shapes and 4 different beam angles, ensuring versatility to suit any environment. Whether you prefer soft or focused cell optics, Sculpt MikroLite delivers exceptional performance without compromising on style.
Output: Up to 1000 lm/ft

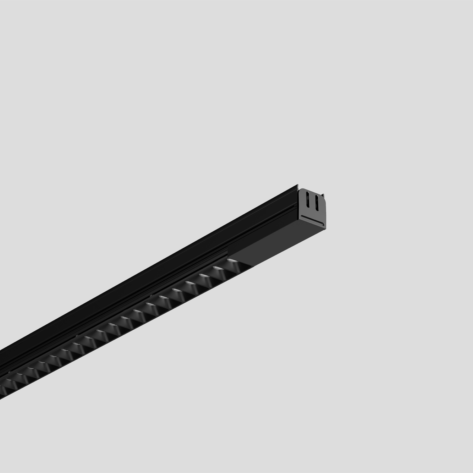

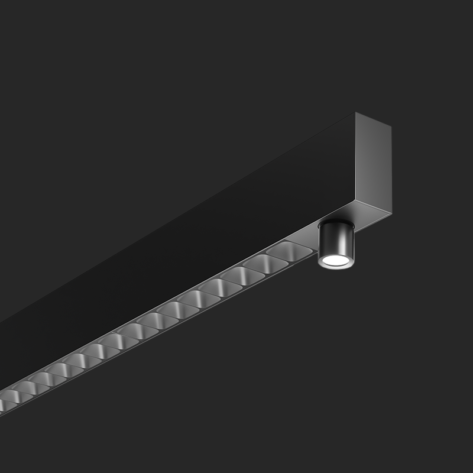

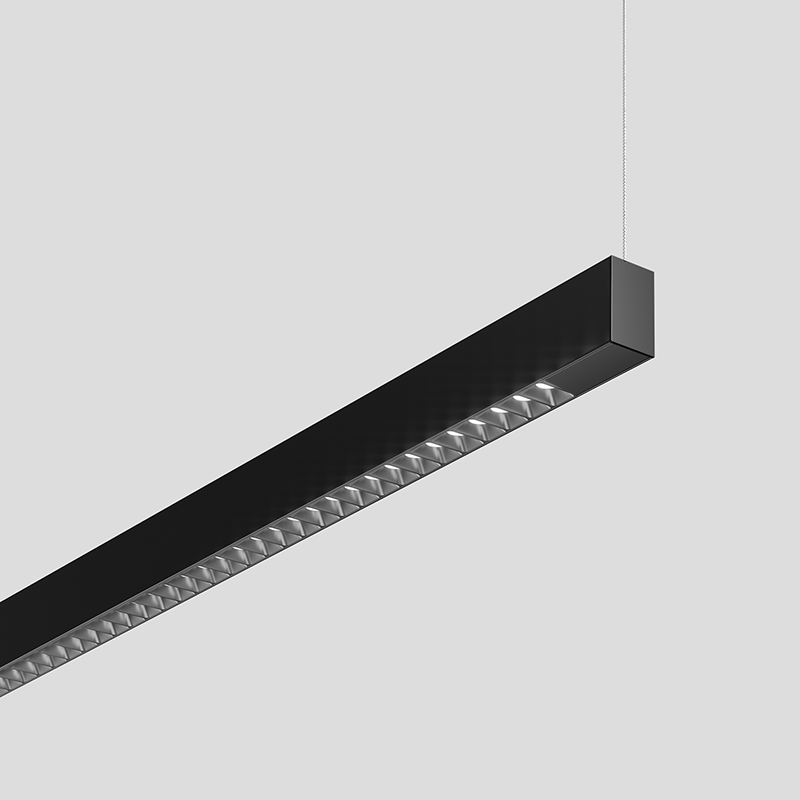

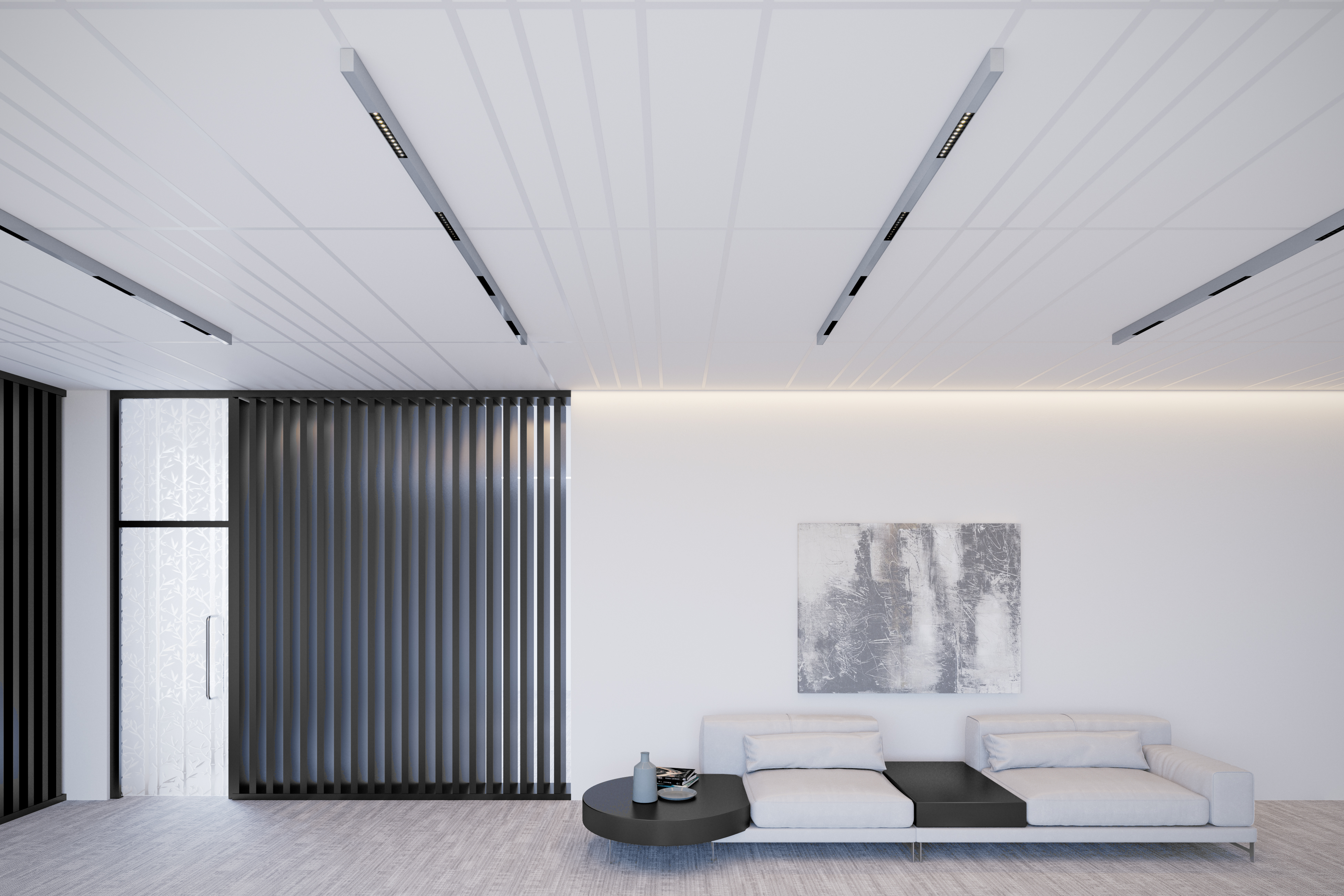

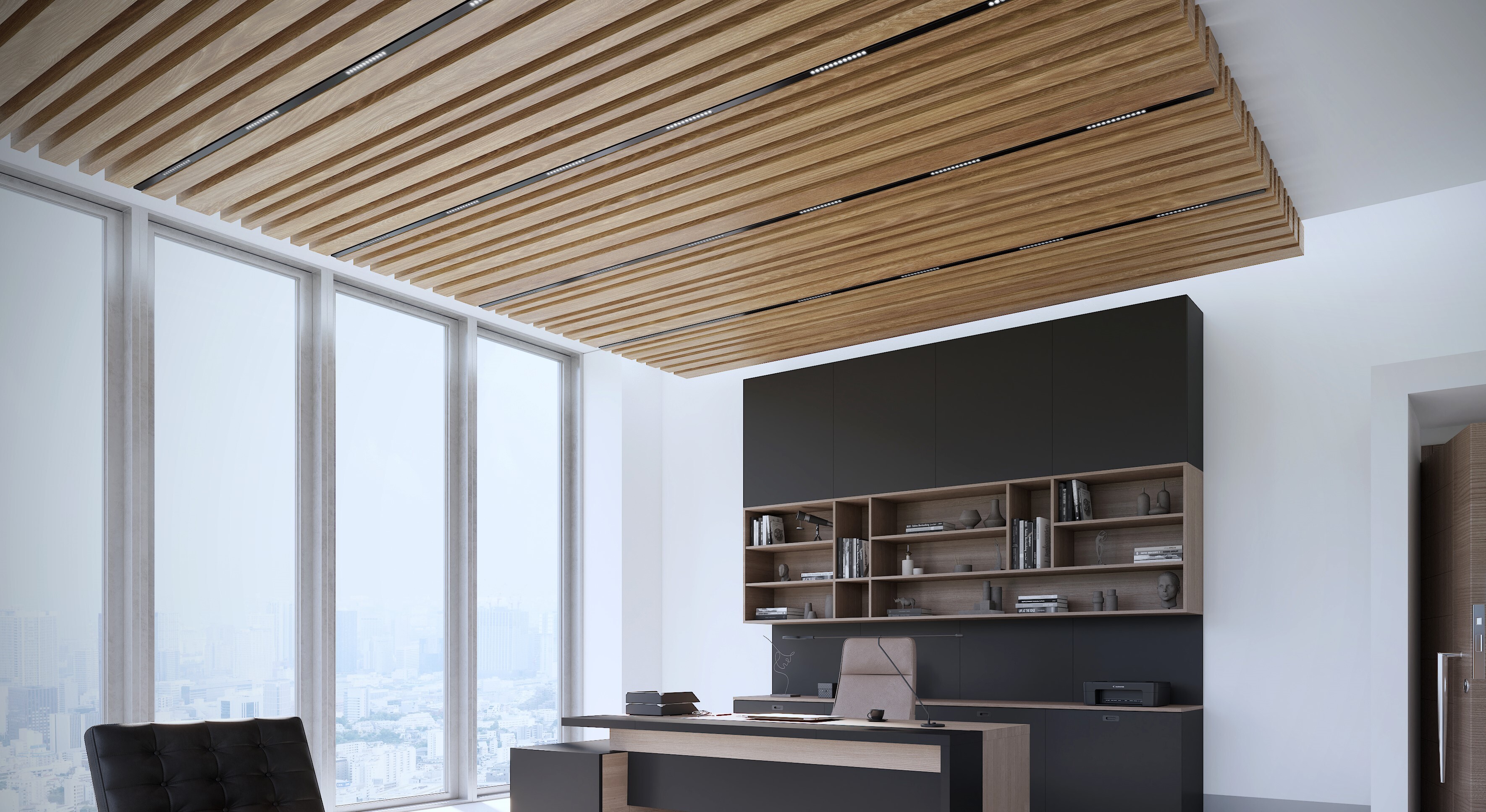

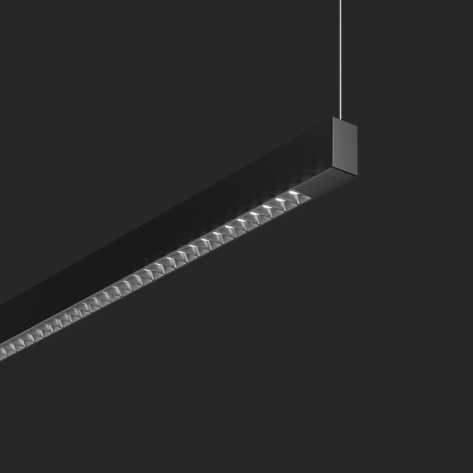

Stencil MikroLite Available in 1” (Stencil pendant) and 1.25” (Stencil surface, slate 1 and Stencil-Flex) widths, Stencil MikroLite can be configured in continuous runs with 12 cell increments or ordered in preconfigured layouts
Output: 1000 lumens delivered / 12-cell module (9.44” length)
Lengths: 2’ to 8’ standalone segments (continuous 12-cell modules) & system runs
Beam angles: 24°, 50°
Cell optics: Soft beam (reflector), sharp beam (TIR)

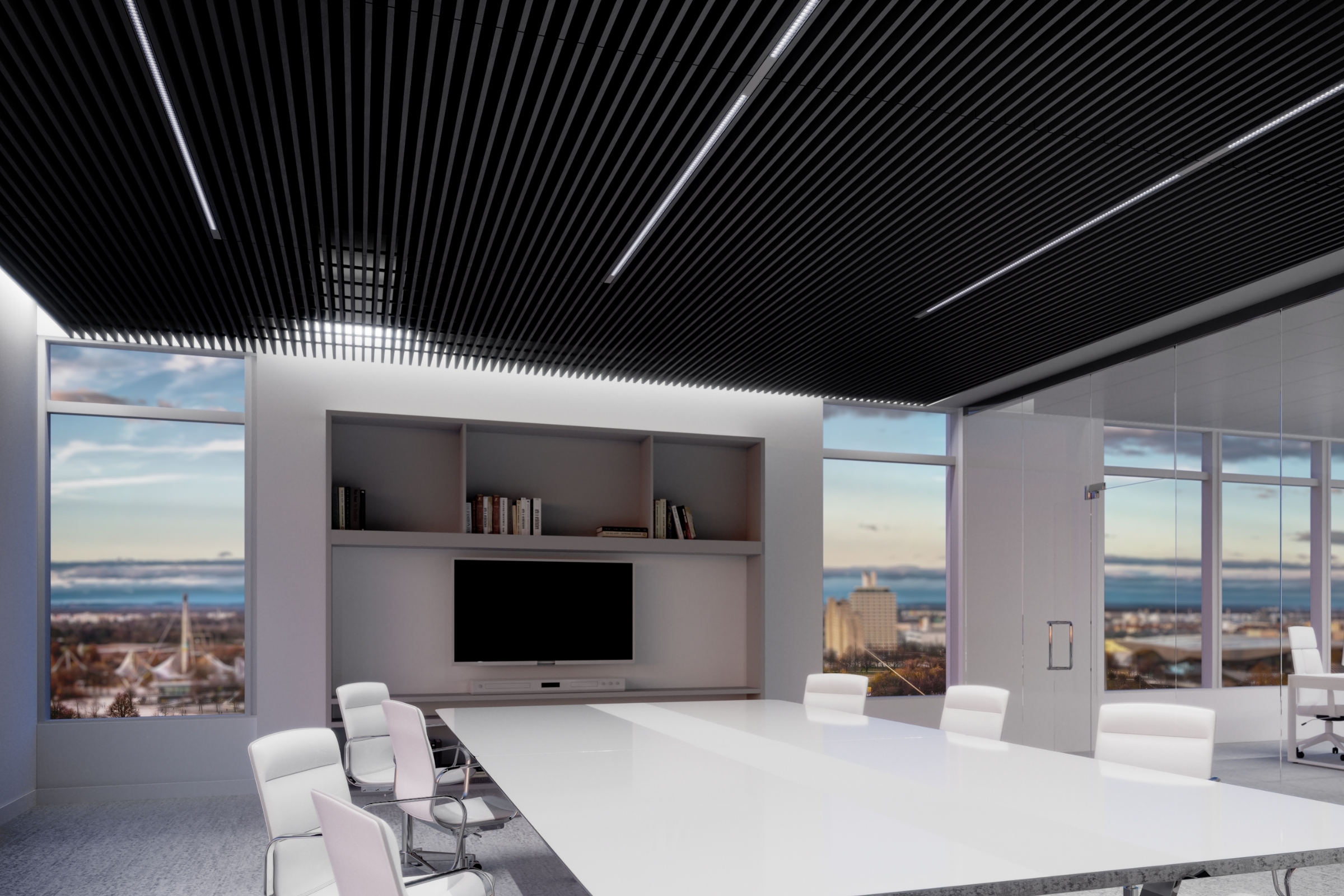

Available for Stencil, StencilFlex and Slate 1
Combined optics available
Information
For Linears – Target Total Luminaire Lumens, calculate by multiplying the original length by your desired lumen value. For example, if you want 800 lumens, multiply 800 × 4 (original length). Target Total Luminaire Lumens input would be 3200.
For optimal accuracy, always use a maximum length of 4ft. Anything beyond this includes only one light source. Note: Direct/Indirect scales proportionally and cannot be adjusted separately.
Efficacy
-- lm/W
Watt per foot
-- W/ft
