Pixel+ is a next-generation architectural downlight platform that brings Axis Lighting's proven MikroLite® optical technology into a compact, high-performance format. Drawing on the same precision optics used in Sculpt, Sketch, and other Axis families, Pixel+ delivers controlled light distribution, low glare, and high visual comfort within a refined, minimalist form.
Designed for spaces where lighting must support the architecture without drawing attention to itself, Pixel+ balances subtlety with output. The discreet, yet powerful, MikroLite® cell optics are offered in both linear and square configurations, providing flexibility for general illumination, accent lighting, and layered lighting applications.
A carefully curated selection of shapes and finishes allows Pixel+ to integrate seamlessly into ceiling planes or create intentional visual contrast. Loft and Conic baffle forms align naturally with ceiling layouts, architectural geometry, and other MikroLite®-based Axis Lighting luminaires. Consistent proportions, clean detailing, and nine matte and metallic high-quality finishes ensure visual continuity across spaces while maintaining optical performance and occupant comfort from quiet, restrained interiors to more expressive architectural environments.

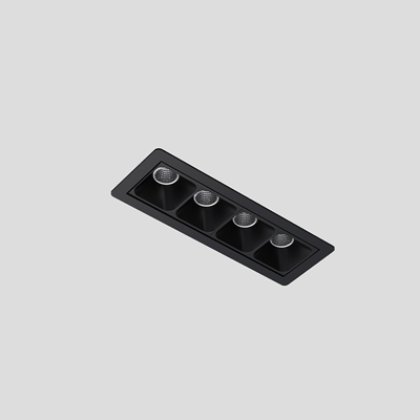

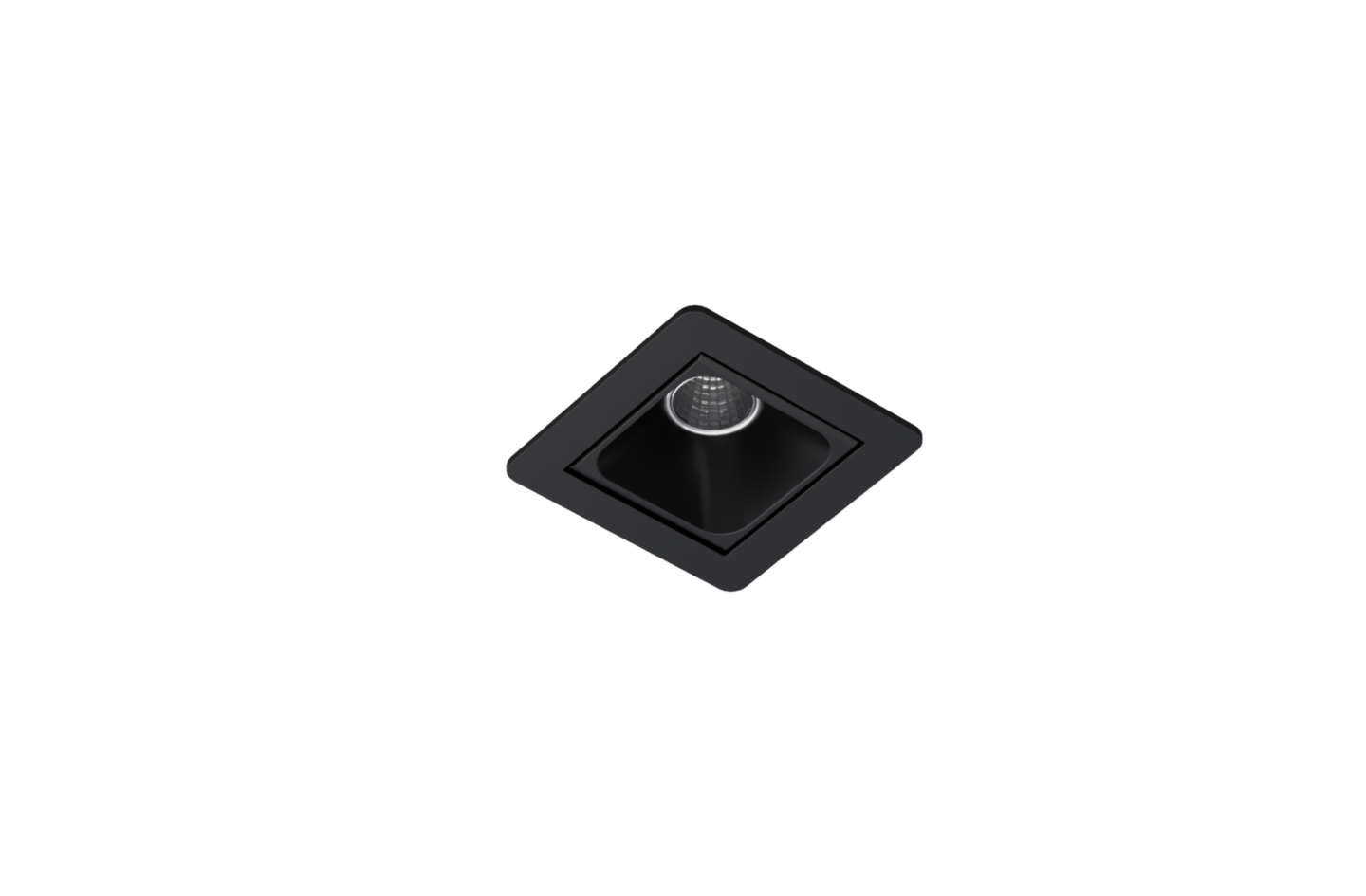

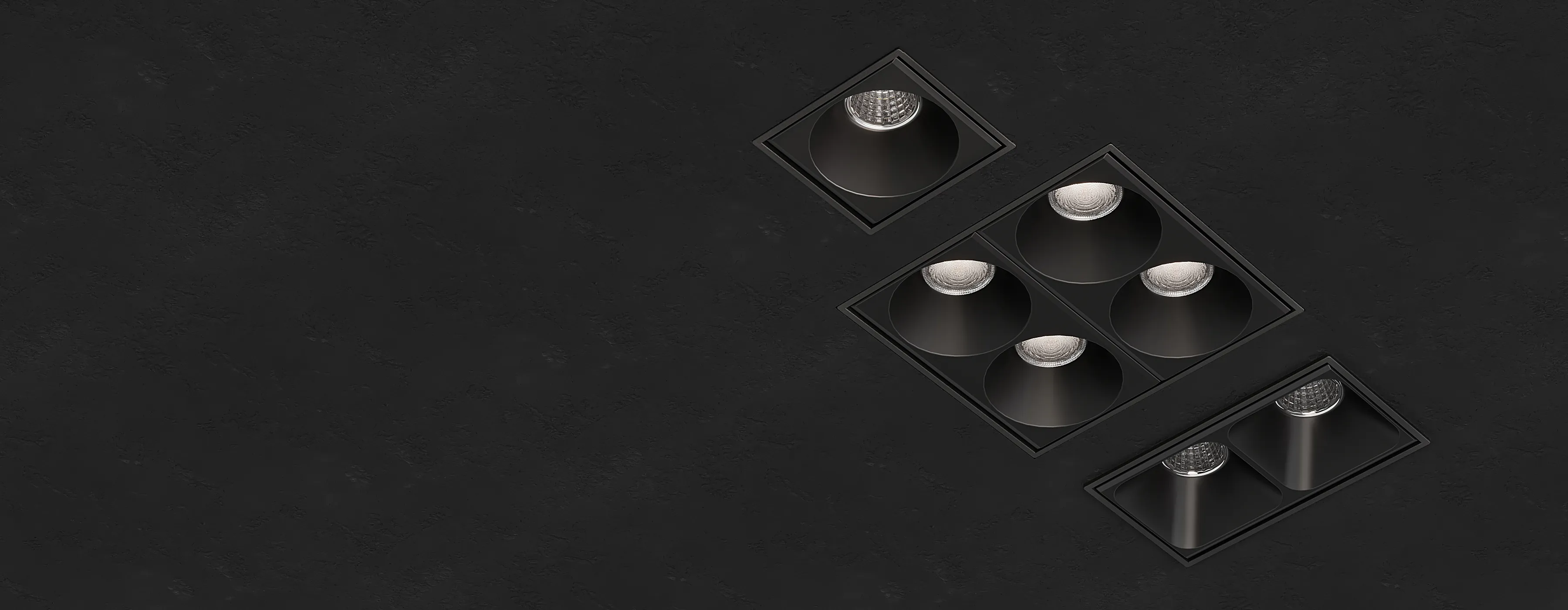

Pixel+ is available in a range of cell configurations: 1x1, 1x2, 2x2, 1x4, and 1x8, providing flexibility for a variety of ceiling layouts and lighting applications.

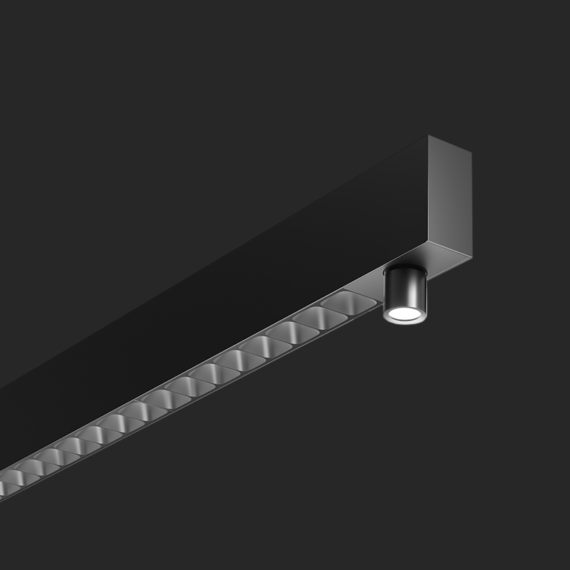

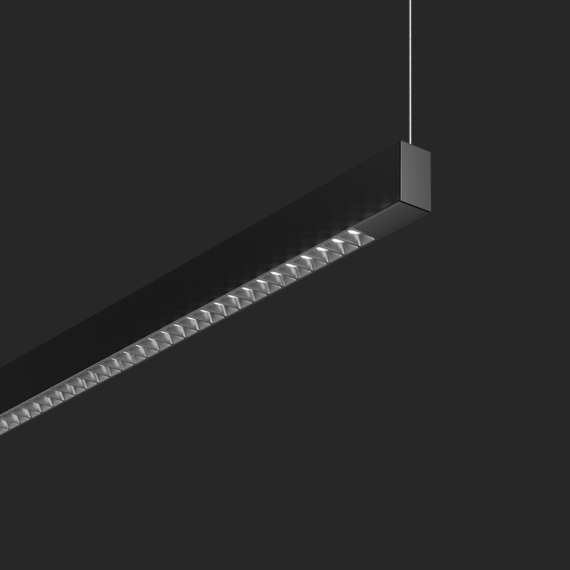

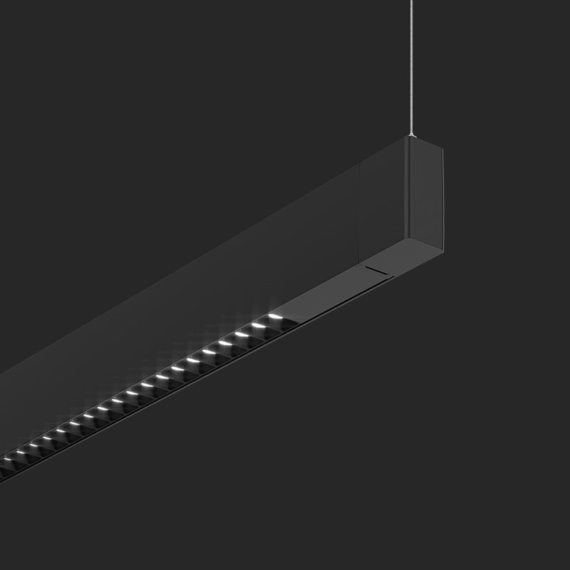

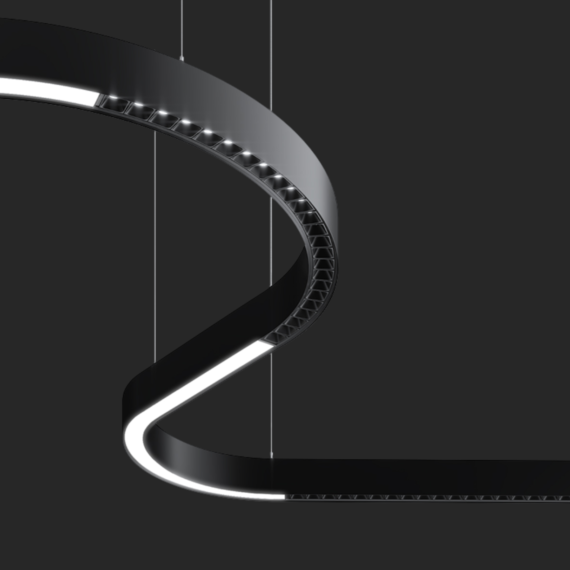

Pixel+ is built around Axis’ MikroLite® optical system, featuring deep-cell optics engineered for exceptional visual comfort, low glare, and uniform illumination. Proven across Axis linear families, including Sculpt, Sketch, and Stencil, MikroLite® delivers controlled light with a refined architectural presence. Multiple optical formats enable designers to precisely tune the beam quality and distribution to suit the space.

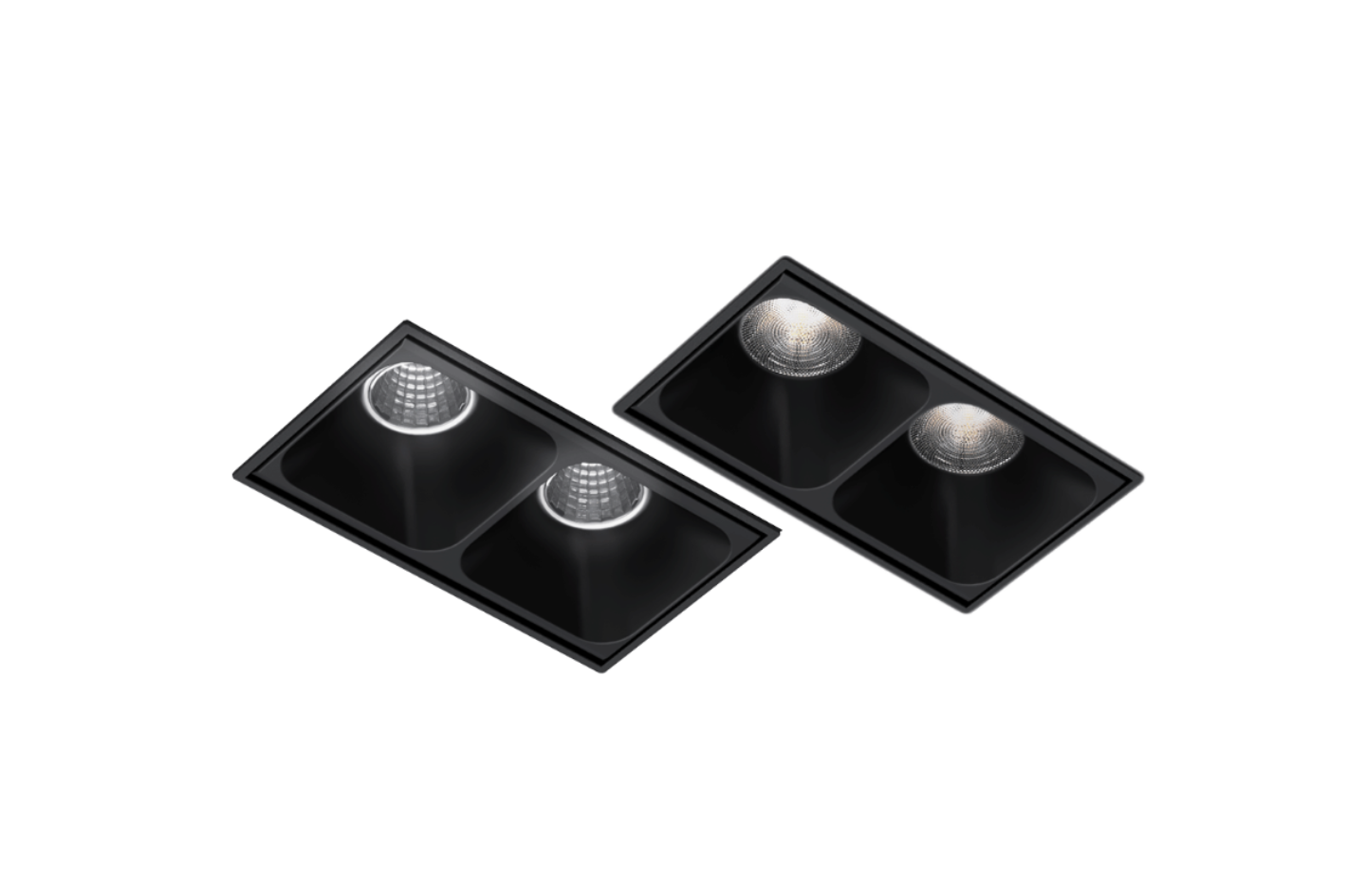

Pixel+ offers two distinct optical cores, each supporting a wide range of design intent:
TIR Optic Positions the light source closer to the aperture for a crisp, focused beam with strong visual definition.
Reflector Optic recesses the light source deep within the cell to produce a softer, quieter beam with exceptionally low glare.
Both optic types are available in five beam angles, from 15° to 60°, enabling application-specific lighting for accent, task, or ambient use.

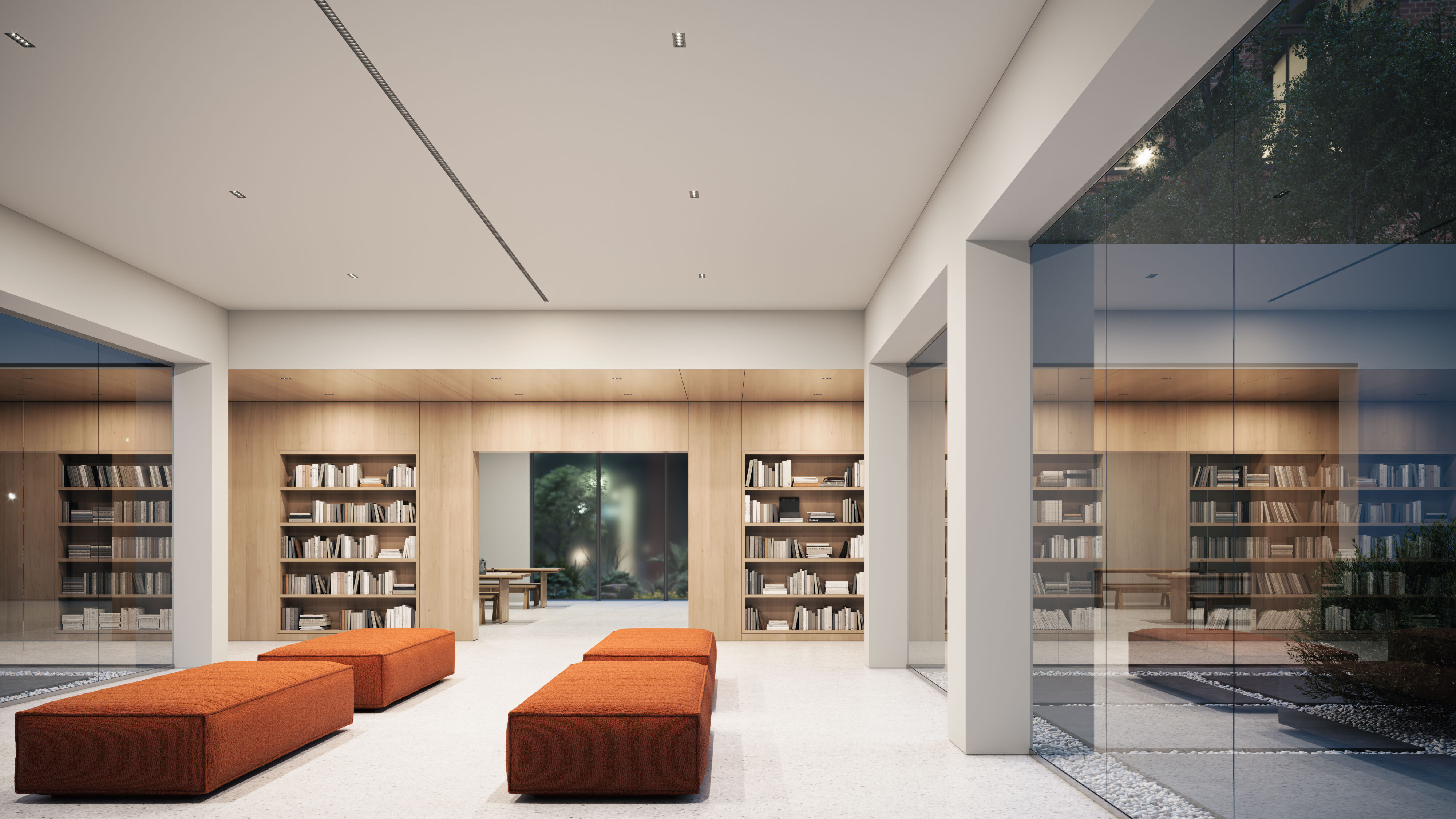

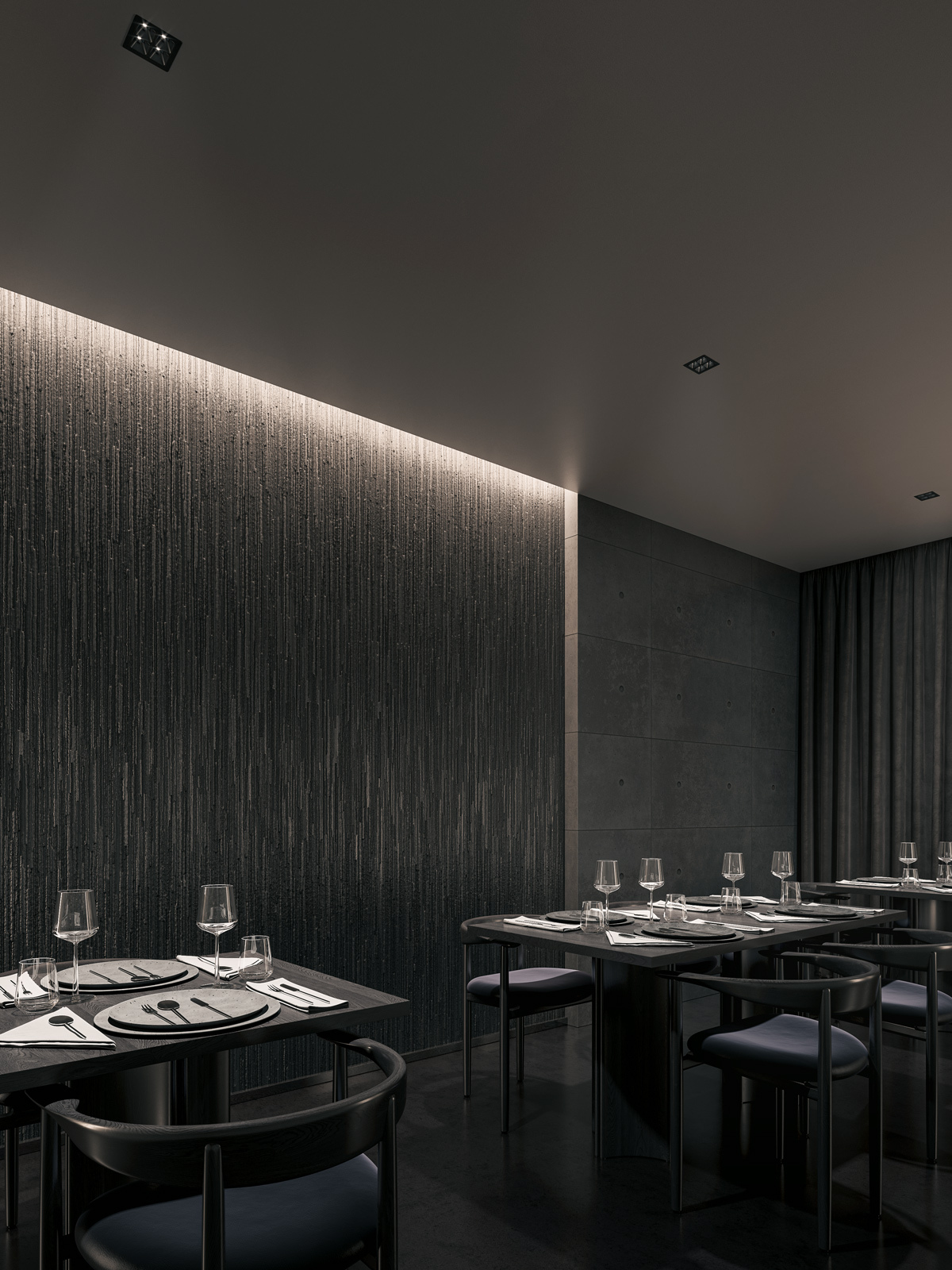

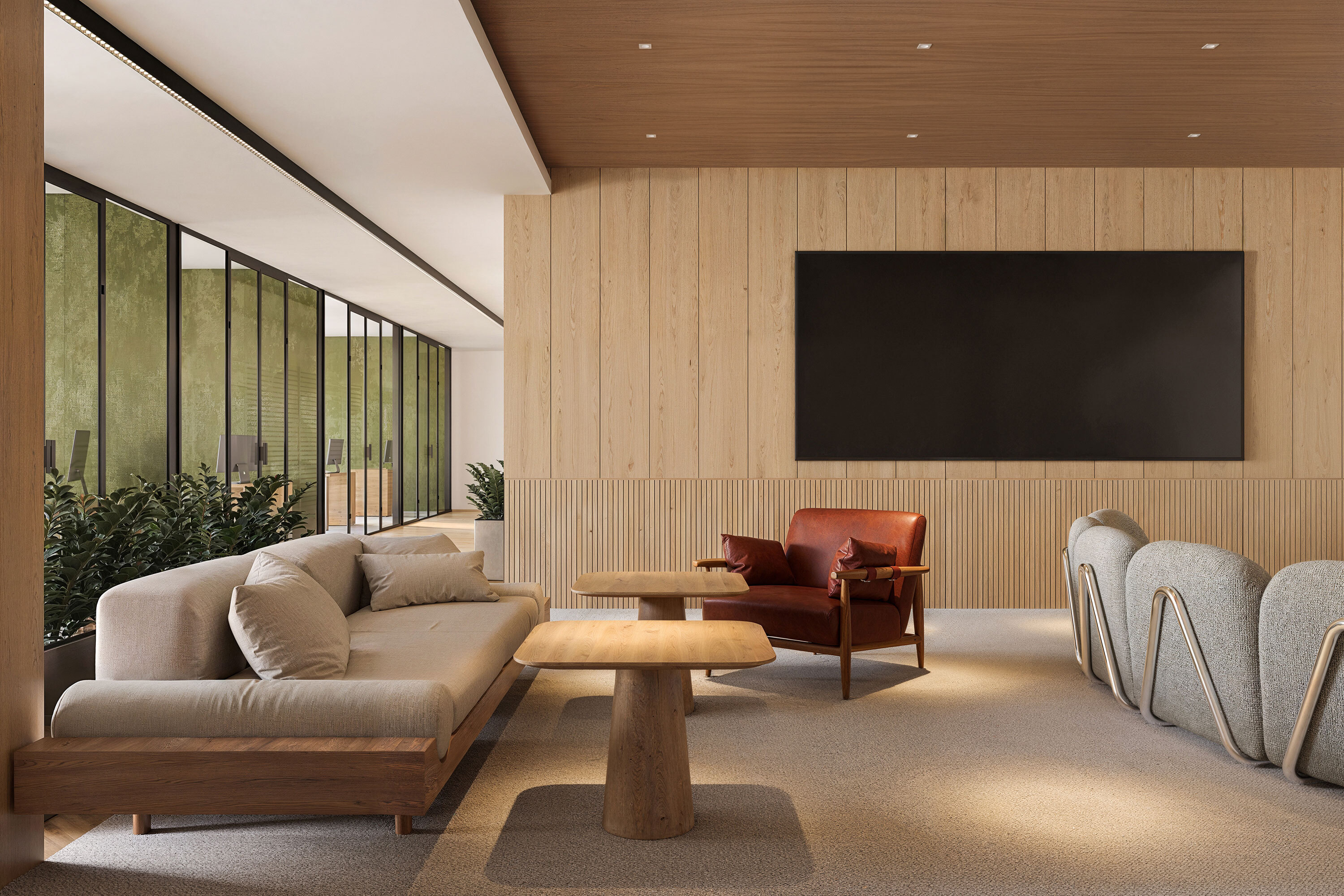

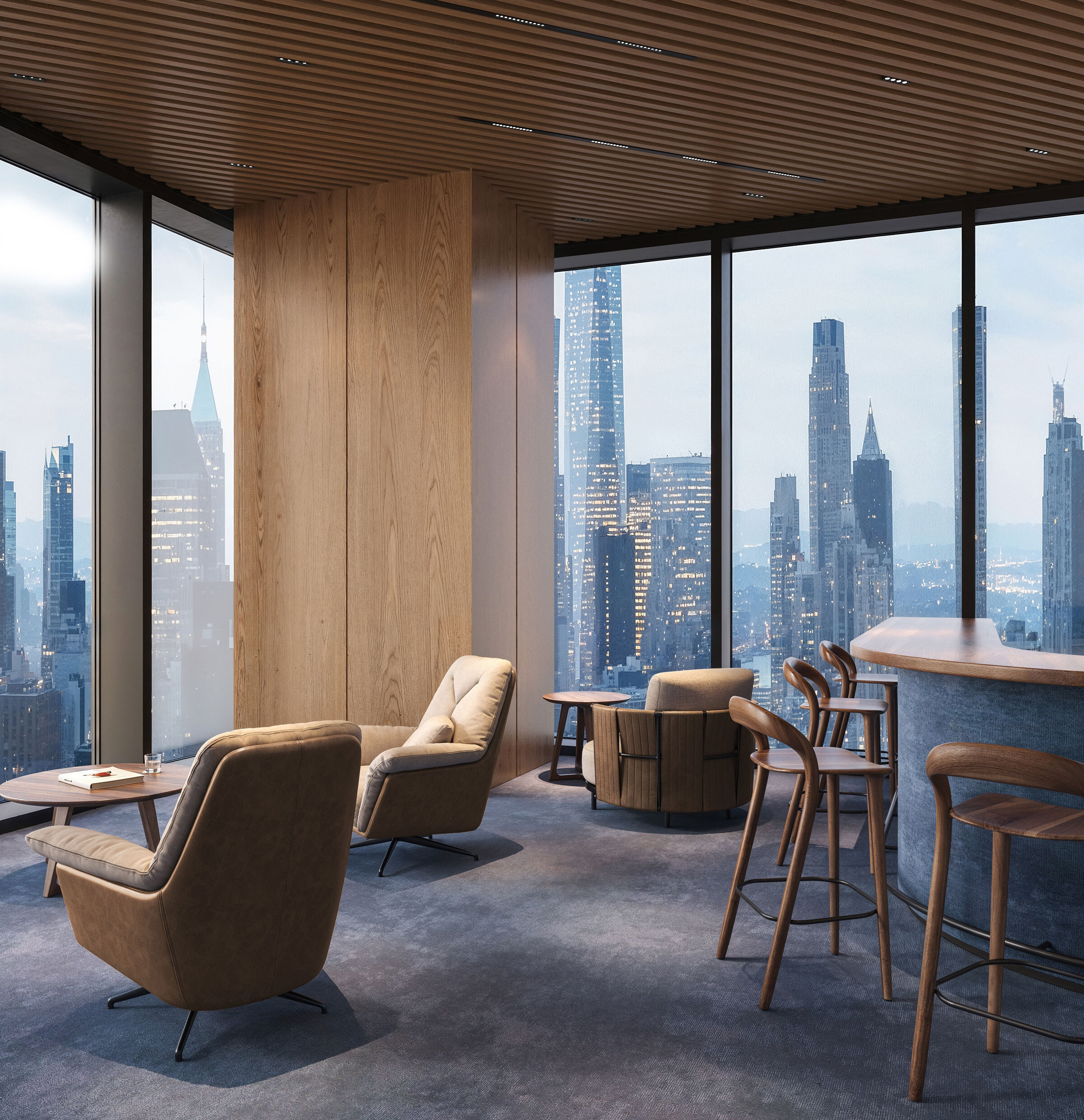

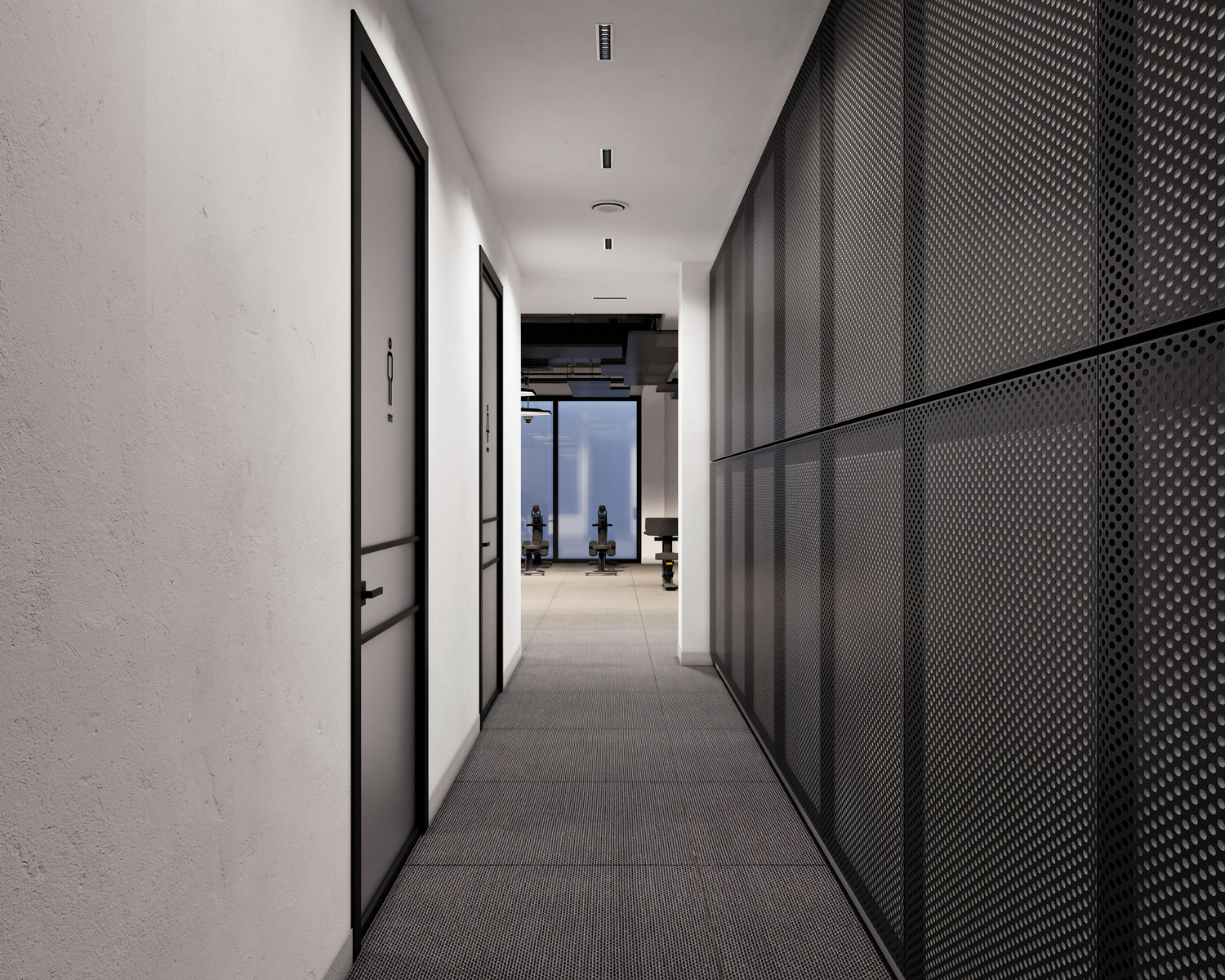

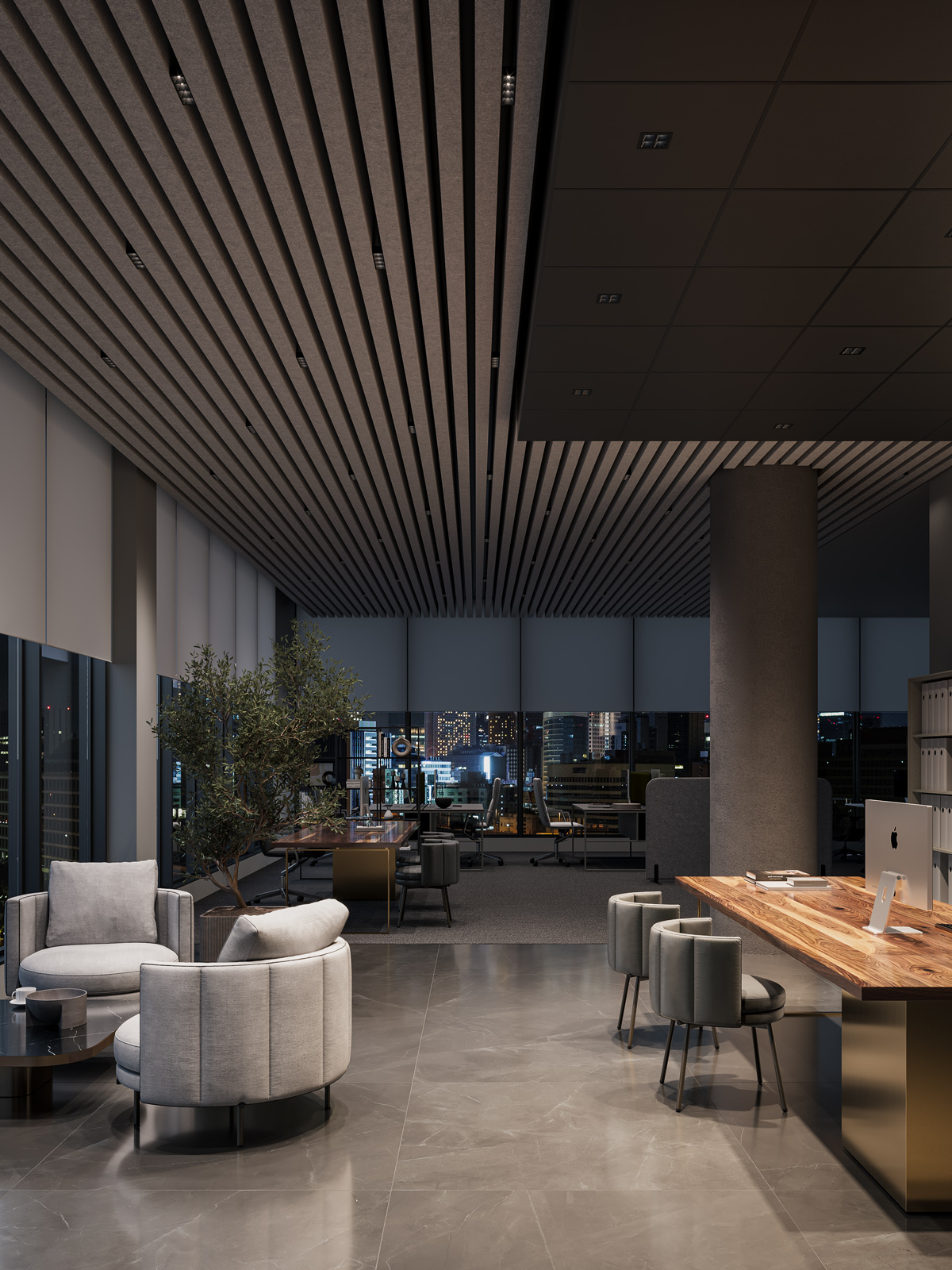

Pixel+ integrates Axis Lighting’s MikroLite® high-efficacy, 90 CRI LED into a compact downlight form, delivering high lumen output without compromising visual comfort or scale. The result is a versatile luminaire suitable for general illumination and accent lighting in commercial, hospitality, residential, and retail environments. Designed for a clean, low-profile ceiling presence, Pixel+ integrates seamlessly into drywall, T-grid, felt, and wood ceiling applications. The minimalist detailing allows the architecture and the light to remain the focus.

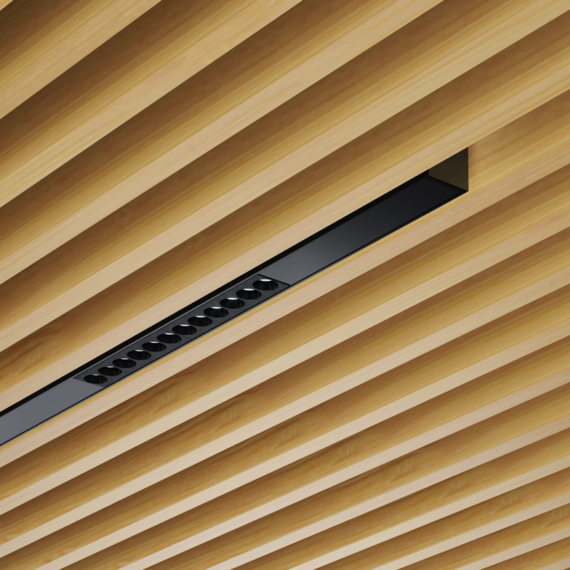

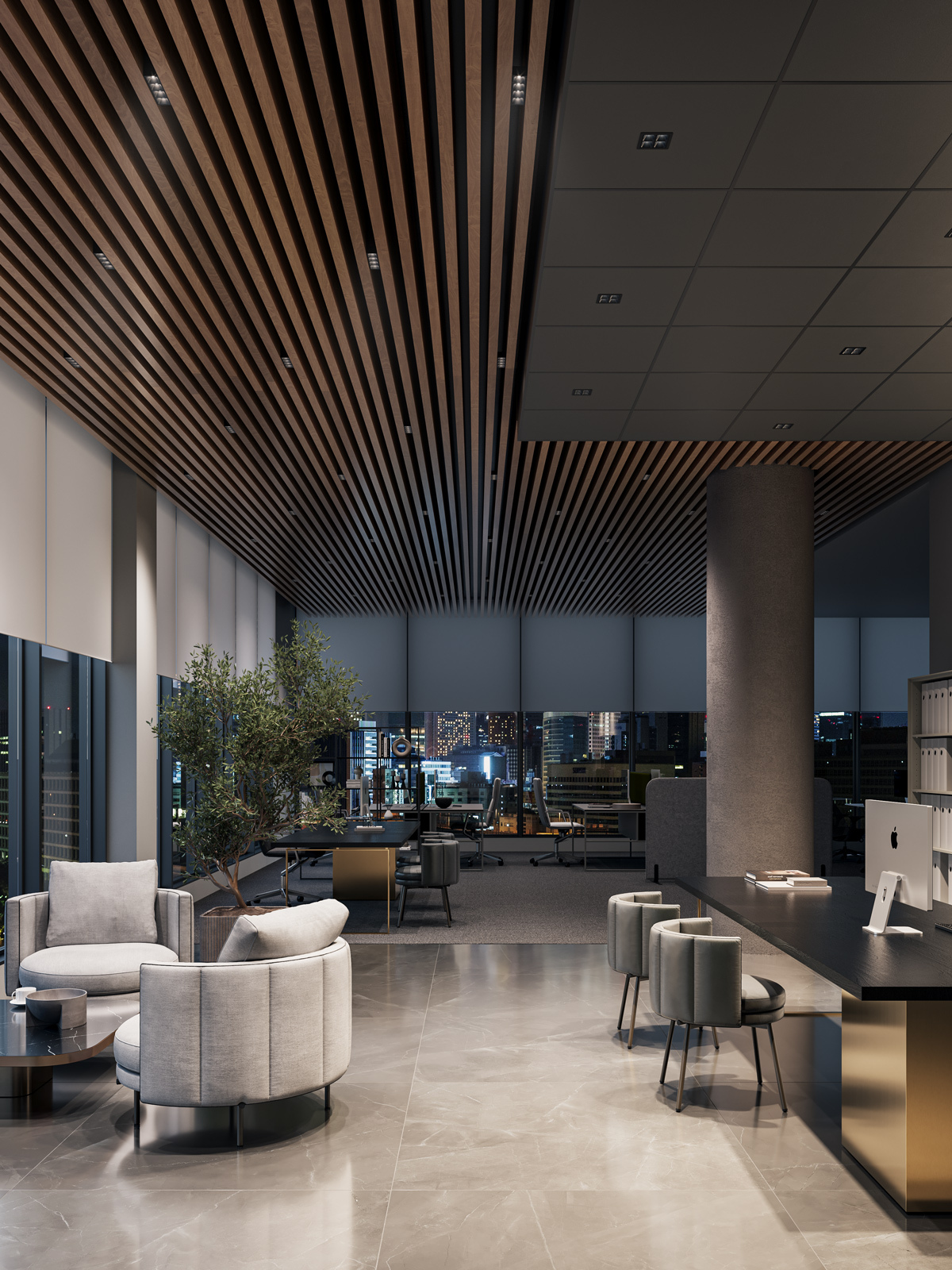

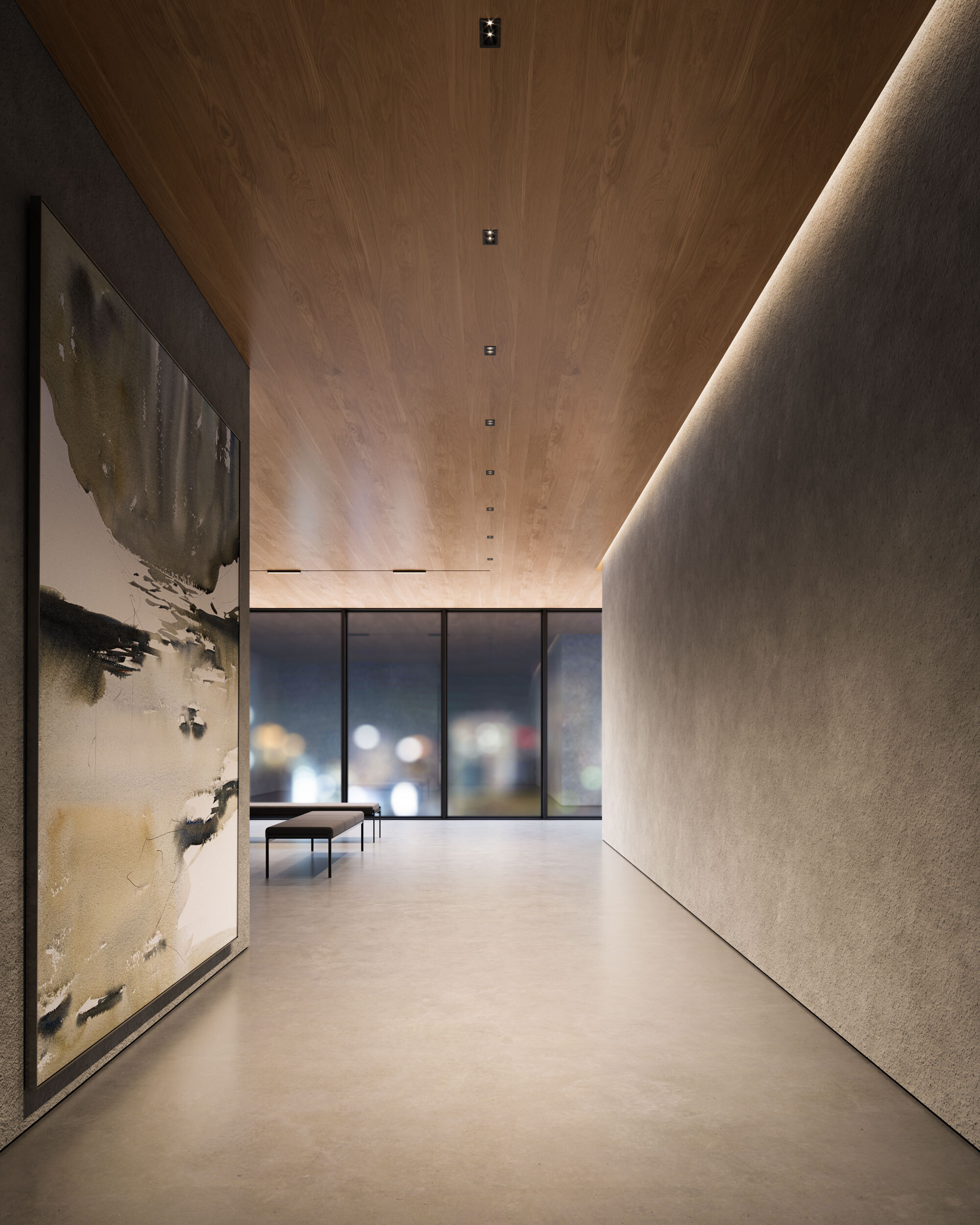

For wood, the magnetic track mounting system provides simplified installation and on-site adjustability, using the same universal ceiling bracket as the Slate Wood Ceiling family for consistency across platforms.
Axis Lighting brings a fresh, coherent approach to MRI lighting, featuring advanced solutions for shielded MRI Rooms and matching luminaires for non-shielded areas. With its MRI Series, Axis offers a comprehensive range of architectural luminaires – including MRI Pixel – engineered specifically for MRI applications.
Whether you need information about shipping, installation, or pricing, or have questions about products, the Axis team is here to help with expert guidance and reliable service.
Information
For Linears – Target Total Luminaire Lumens, calculate by multiplying the original length by your desired lumen value. For example, if you want 800 lumens, multiply 800 × 4 (original length). Target Total Luminaire Lumens input would be 3200.
For optimal accuracy, always use a maximum length of 4ft. Anything beyond this includes only one light source. Note: Direct/Indirect scales proportionally and cannot be adjusted separately.
