Decorative Inserts — Certifications
-
Chime Cylinder
-
-
Chime Taper
-
-
Helios Disk
-
-
Luna Orb
-
-
Orbit Tube
-
-
Stella Spotlight
-
Stella Spotlight.
Timeless accent lighting for AxisTrak - A classic design in the spotlight
These Axis decorative accent lights present a classic design suited to modern interiors. Ideal for adding visual interest to areas and objects, Stella Spotlights are only offered on StencilFlex® lighting systems. New StencilFlex Curves feature 90° curved corner Hub segments available in lit and unlit configurations: blank, 1xStella 55mm, 2xStella 55mm.
AxisTrak Mounting
Stella Spotlights come prewired for mounting on StencilFlex lighting systems using AxisTrak™ Inserts. Just like any track lighting element, Stella Spotlights can be positioned anywhere along the AxisTrak Insert.
StencilFlex is an innovative line-voltage lighting system delivering the layers of lights you want, where you want them. It features lighting inserts that slot into segments anywhere along a suspended, lightweight architectural framework that resembles a transparent ceiling grid.
Product
Highlight
Stella 32 Single 32mm (1 1/4”) aperture width suited for discreet accent lighting. 400 lumen output. Available beam angles: narrow and wide.
Stella 32 Double spotlight, each with 32mm (1 1/4”) aperture width. 400 lumen output per accent light. Available beam angles: narrow and wide.
Stella 55 accent light featuring single 55mm (2 3/8”) aperture. Delivers up to 1800 lumens ideal for highlighting architectural elements and spaces. Available beam angles: narrow, medium, and wide. Also offered with all-new StencilFlex Curves, integrated in 90° curved corner Hub segments (1 or 2 Stella 55).
Cylinders.
Jewelry-inspired decorative pendants

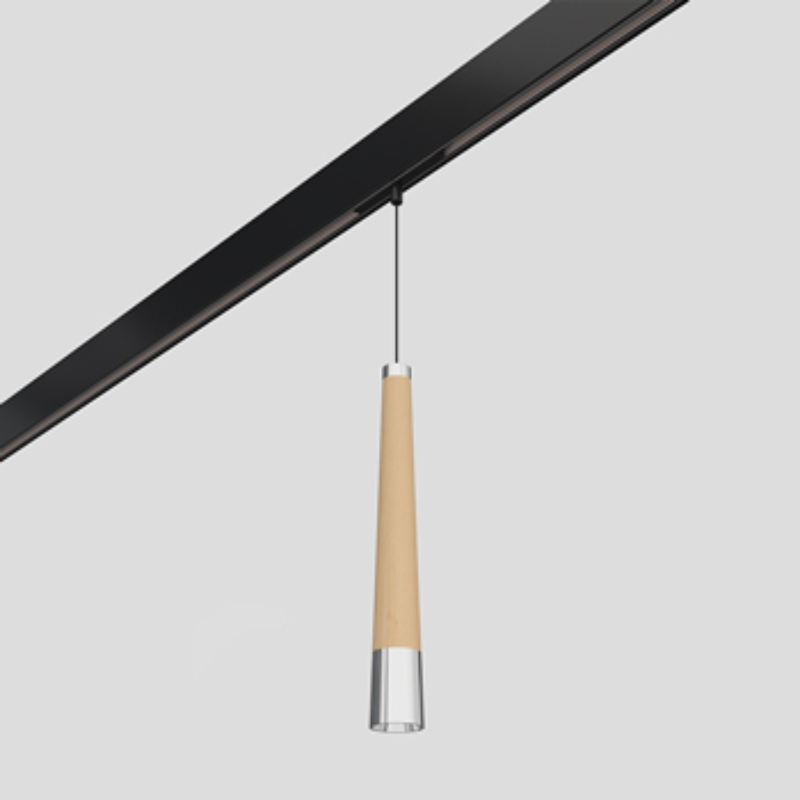

The Cylinder family of pendants exemplifies the balance of form and function, delivering high-performance lighting solutions with exceptional aesthetic appeal. Designed to integrate seamlessly into modern architectural environments, these pendants—comprising the Chime Cylinder, Chime Taper, and Cylinder 55 & 100—offer versatile, customizable options for a wide range of commercial and residential projects. With a focus on precision, efficiency, and design flexibility, the Cylinder collection addresses both technical and stylistic demands.
Cylinder luminaires offers a choice of installation methods.
- Standalone mounting on junction box, including canopy and driver.
- Prewired track mounting on StencilFlex® lighting systems using AxisTrak™ Inserts.
- Swag mounting accessories are available to customize pendant location and place it exactly where you need it.
Luna Orb.
Exquisite globes of light
Spheres Adding Atmosphere - Soften your surroundings with the round embrace and classic look of Luna Orb.
Choose from three elegant designs: Saddle, Flush, Pendant.
Luna Orb Pendant
Luna Orb Pendant offers two mounting options. It can mount on a StencilFlex lighting system using an AxisTrak Insert or it can be ceiling-mounted as a standalone luminaire, including canopy and driver. Suspension cable adjustable up to 140"
Mounting Options: All three Luna Orb decorative luminaires mount on StencilFlex lighting systems using AxisTrak Inserts. StencilFlex is an innovative line-voltage lighting system featuring interchangeable lighting inserts that slot into suspended framework segments. Luna Orb Pendant can also be ceiling-mounted as a standalone luminaire, including canopy and driver.
Orbit Tube.
Innovative blades of light for AxisTrak - Modern Slender Design
These uniquely designed Axis decorative luminaires form dynamic arrays of layered direct illumination. Orbit Tube is ideal for creating movement and enhancing a StencilFlex layout. Featuring a bold, streamlined look, Orbit Tube comes in a choice of styles and orientations to provide added design flexibility.
Pivot: Two-Way Adjustability
This easy-to-tweak lighting instrument is sure to make an impact. Orbit Tube Pivot enables fully adjustable aiming with RL rotation and up-down tilting. Available in 3’ lengths.
Stagger: Asymmetric Look
Orbit Tube Stagger makes a statement using asymmetric positioning, especially in grouped layouts. It ensures rotational aiming using an AxisTrak™ adaptor mounted at 2/3 of the length of the tube. Available in 3’ lengths.
Helios Disk.
A Bright, Comforting Sun-Inspired Design
Featuring a rounded profile reminiscent of the sun, Helios Disk that packs a punch of direct, glare-free light thanks to smooth, frosted-lens optics. This troffer alternative provides a uniform, diffuse glow suited to large areas. Its tapered rim and regressed lens add elegance to the shallow disk housing.
Powerful Illumination
Delivering up to 2700 lumens, Helios Disk can provide general/ambient illumination as well as task lighting to an area.
- Lens diameter: 18”
- Rim depth: 2 3/8”
- Choice of outputs: HI-output: Up to 2700 lumens and LO-output: Up to 1710 lumens
- Standalone mounting option including canopy and driver.
- Prewired for track mounting on StencilFlex lighting systems using AxisTrak Inserts. StencilFlex is an innovative line-voltage lighting system featuring interchangeable lighting inserts that slot into suspended framework segments.
Projectors.
High-output accents for AxisTrak: The Perfect Highlighting Tool
Enhance artwork and architecture with precision lighting. Featuring adjustable zoom, GOBO projection, and flexible aiming (359° rotation, 90° tilt), these projectors deliver high-output illumination with narrow and wide beam options.
Framing Projector
This all-new AxisTrak insert is perfect for framing pictures & artwork. With adjustable zoom it makes lighting your favorite artwork hassle free. Also available with GOBO (Go Between Optics) custom picture projecting. View Product
Constellation Projector
Constellation Projector lets you illuminate with precision, draw attention to areas of interest, and bring out the best in architectural elements. With its high lumen output and superior aiming flexibility, Constellation constellation projector showcases what matters in the space. View Product
- Full adjustability: 359° rotation and 90° tilt.
- Beam angle options: narrow, wide
- Output: 600lm
- Unit power consumption: 7.5 W (maximum consumption per AxisTrak insert: 60W)
